DIN rail profiles, flush and surface mounting distribution boards, metal and polyester panel enclosures. From coil to finished part on a single line — with roll-forming machines and high-tonnage presses at our own plant in Kocaeli, Türkiye.
DT-3575-S-2000
In Catalogue 2026 order: from the panel body to the rail inside it, from terminal blocks to push buttons — from one supplier.
35×7.5 and 35×15 top-hat profile. Slotted and unslotted, pregalvanized and Cr+3 finish. Standard 2000 mm length, pre-cut rails to size and rail cutting tools.

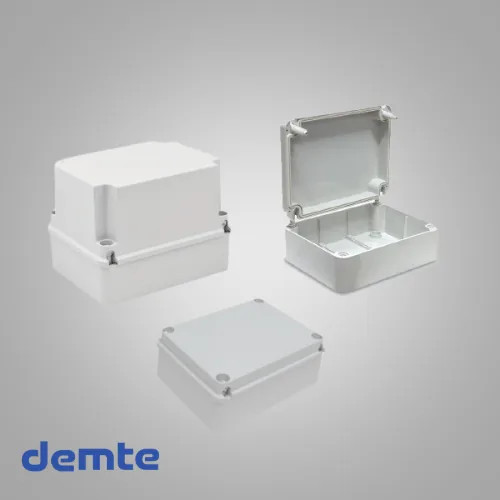

ABS connection boxes with cable gland entries and press-fit covers. IK10 impact resistance, 650°C glow-wire test, RAL 7035.
Junction Boxes →

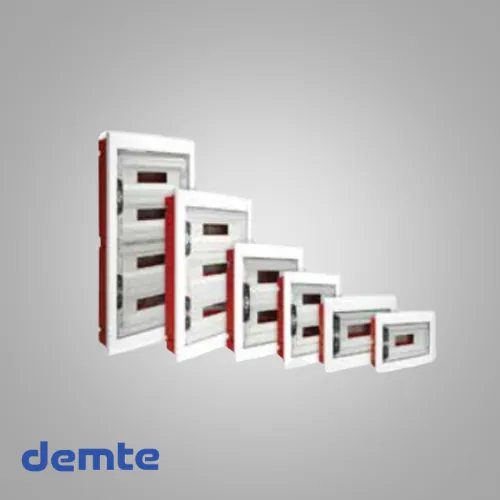

Flush and surface mounting boards from 8 to 90 modules. Blank or smoked door, hinges opening beyond 180°, neutral and earth terminals fitted.
Distribution Boards →

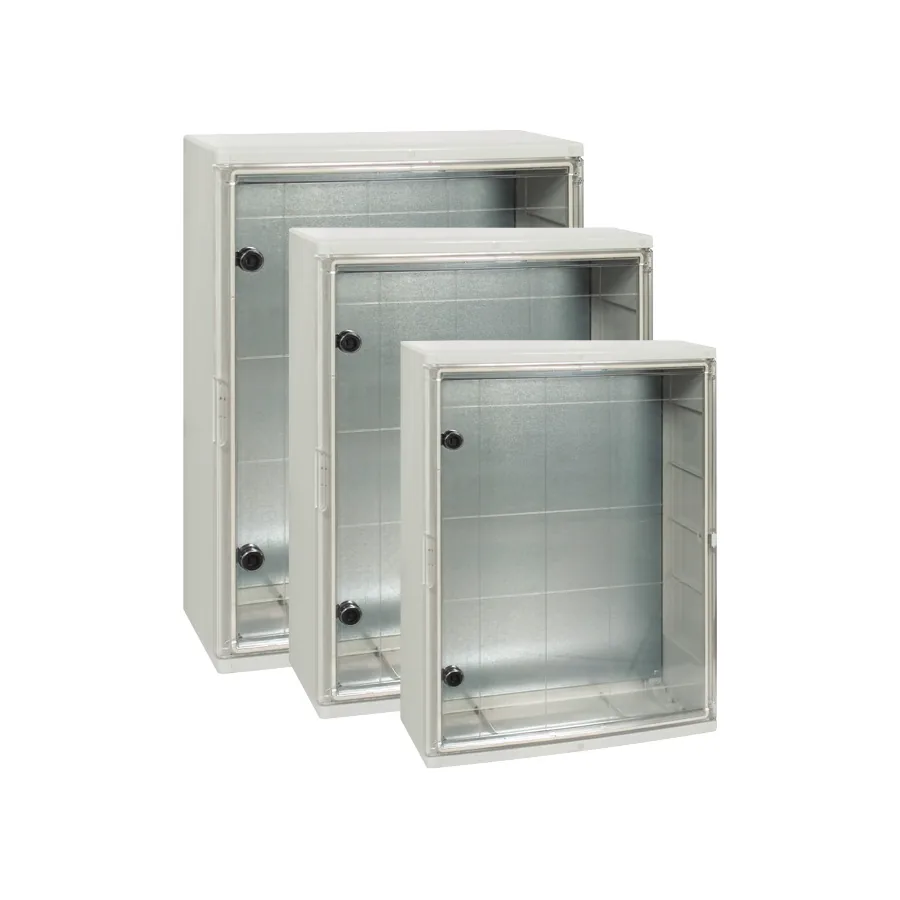

IP65 thermoplastic body, triangular lock, halogen-free ABS. For protective devices in residential, commercial and industrial premises.
Watertight Boards →

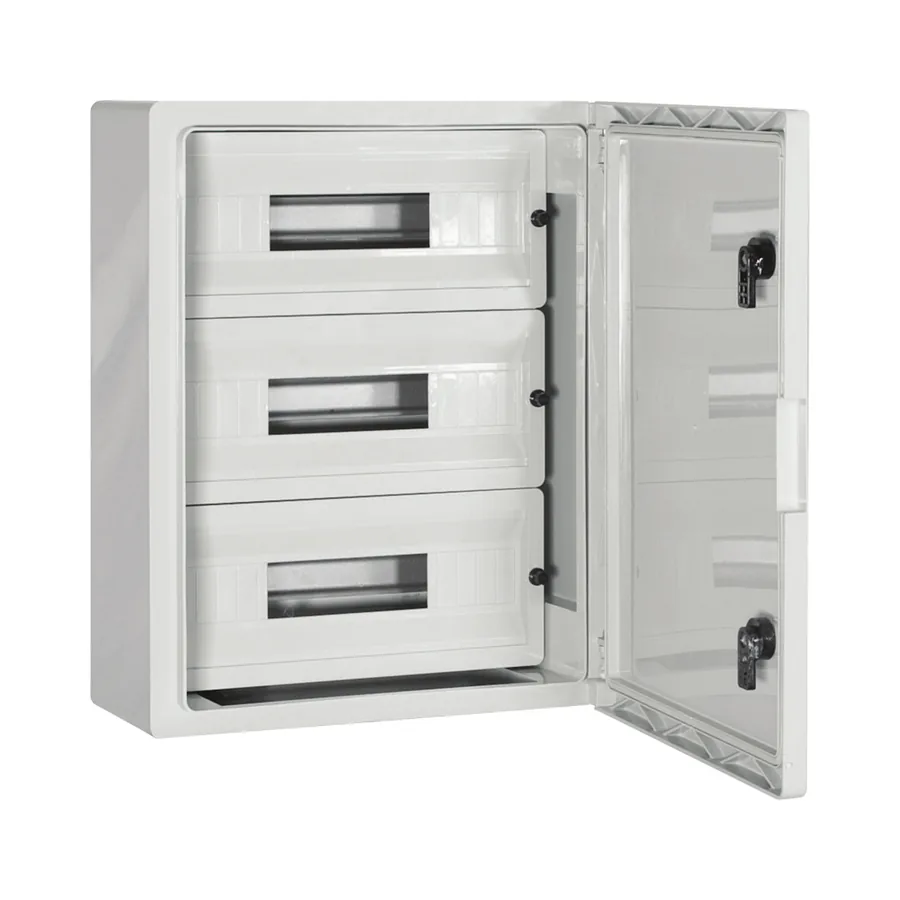

ABS-PC body with a PUR gasket for a high sealing level. Internal layout with DIN rail fixing, IK10 and GWT 650°C.
DIN Rail Distribution Boxes →

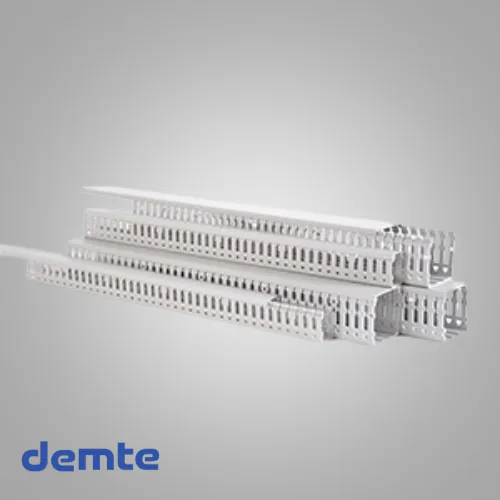

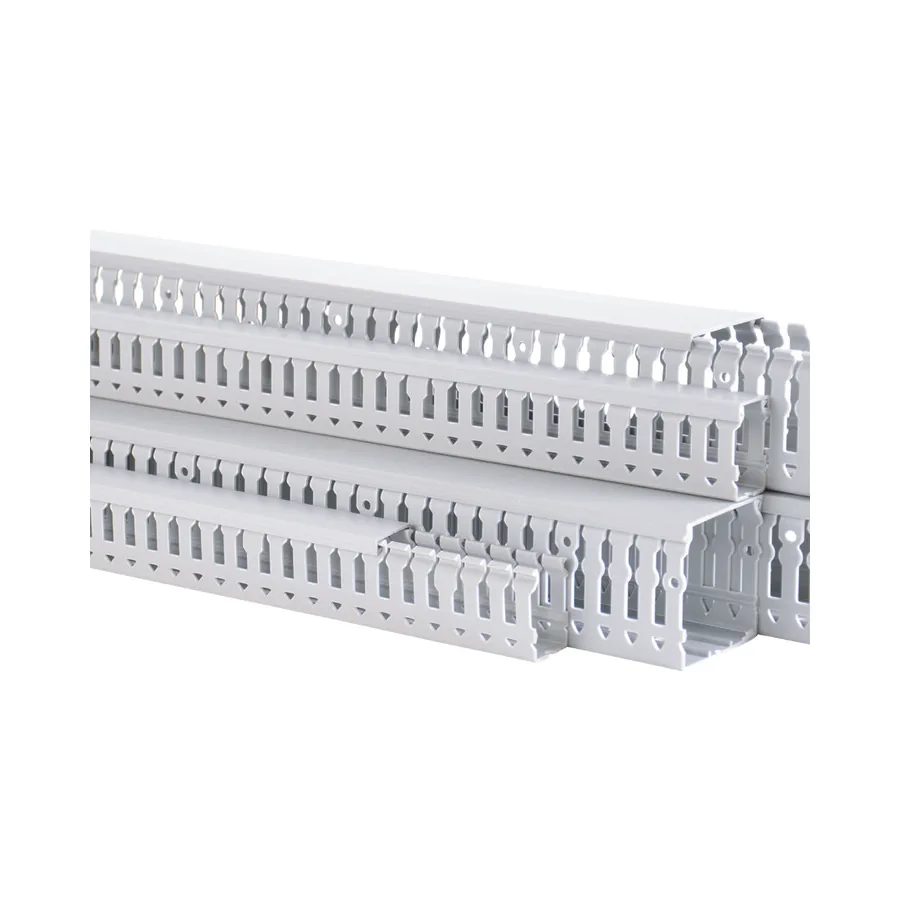

Slotted duct and its snap-on cover for cable routing inside the panel. Sections from 25×25 up to 100×80.
Slotted Wiring Ducts →

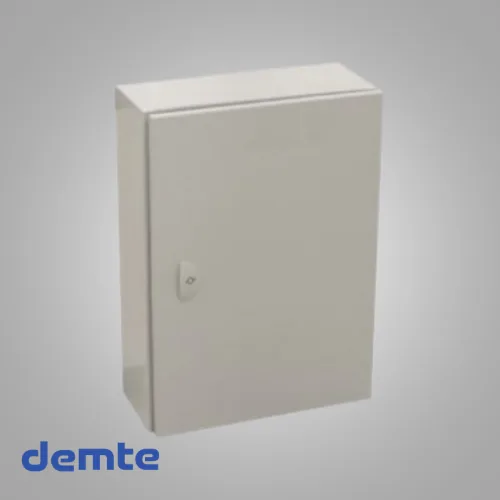

Wall-mounted enclosures in DC01 sheet steel: K series 0.80 mm IP54 for indoor use, E series 1.20 mm IP66. Galvanized sheet steel mounting plate included, concealed hinges, gland plates.
Metal Enclosures →

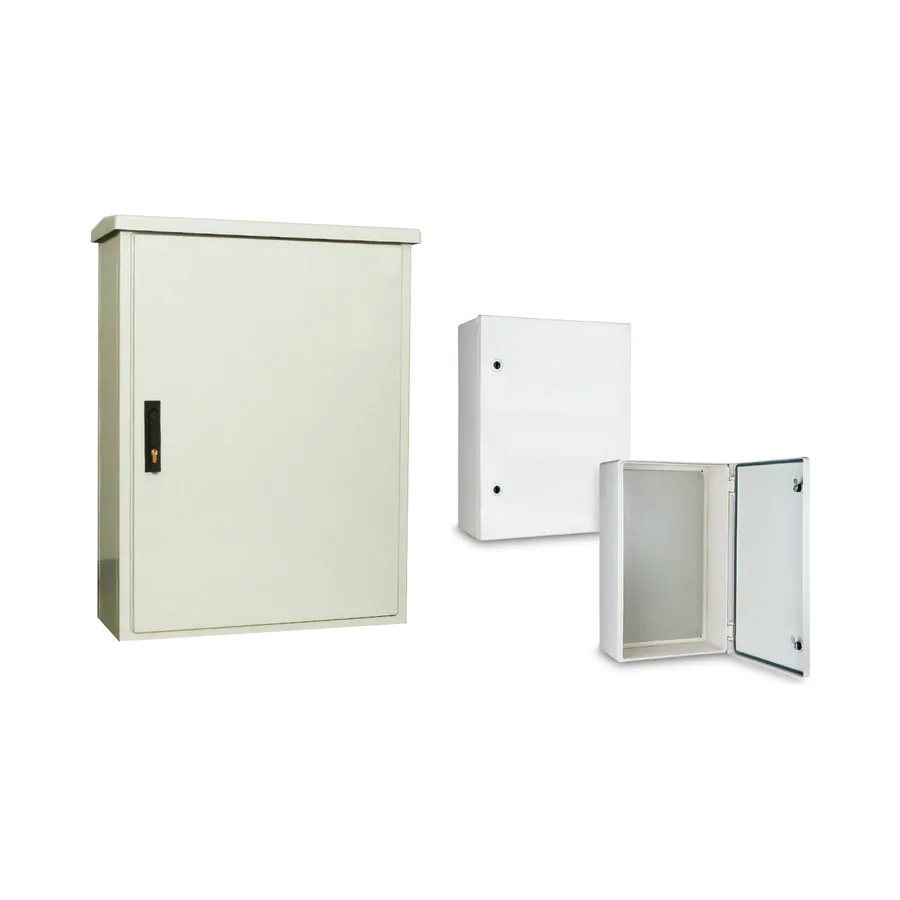

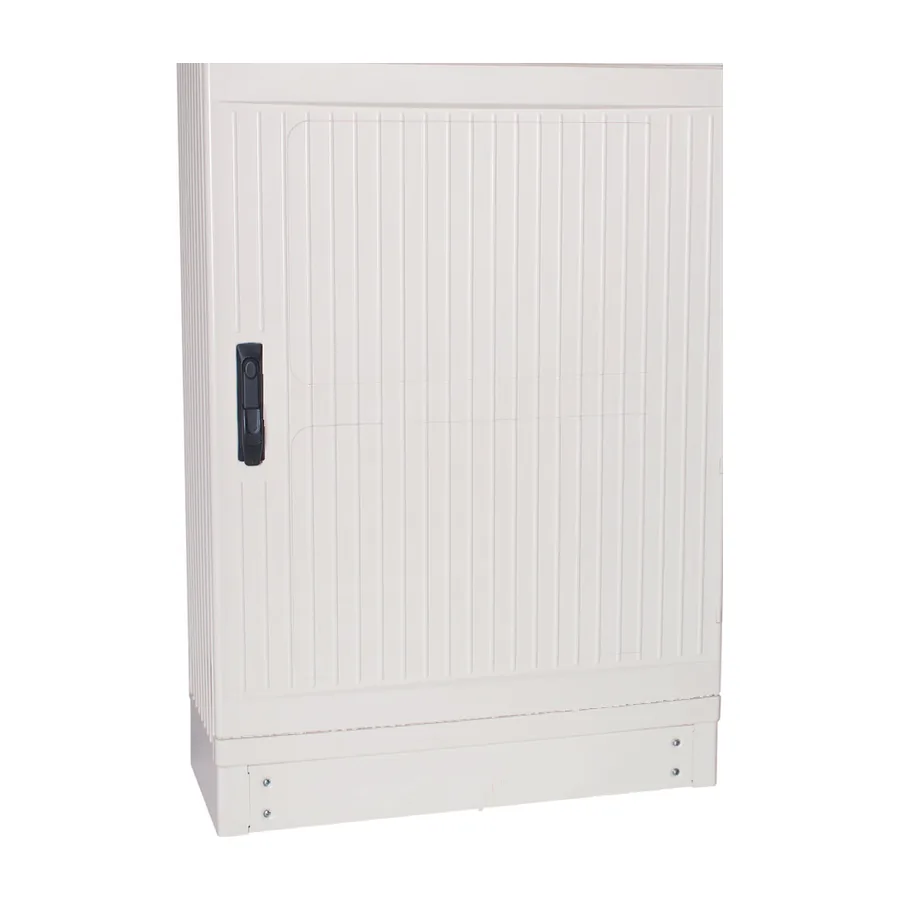

Glass-fibre reinforced polyester body, IP54. For corrosive environments and outdoor use; with a 1.00 mm mounting plate.
Polyester Boards →

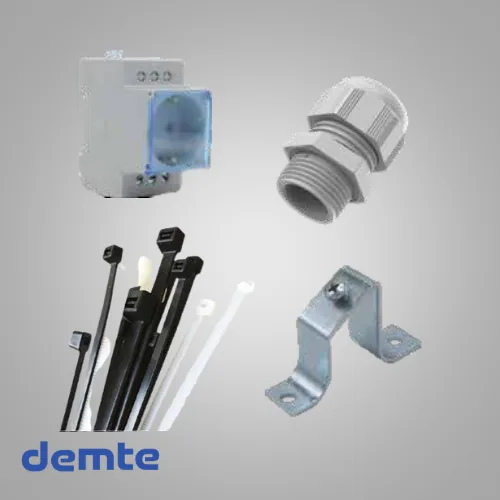

Document pockets, cable glands, cleats, locks, neutral busbars and mounting hardware. The widest section of the catalogue.
Panel Accessories →

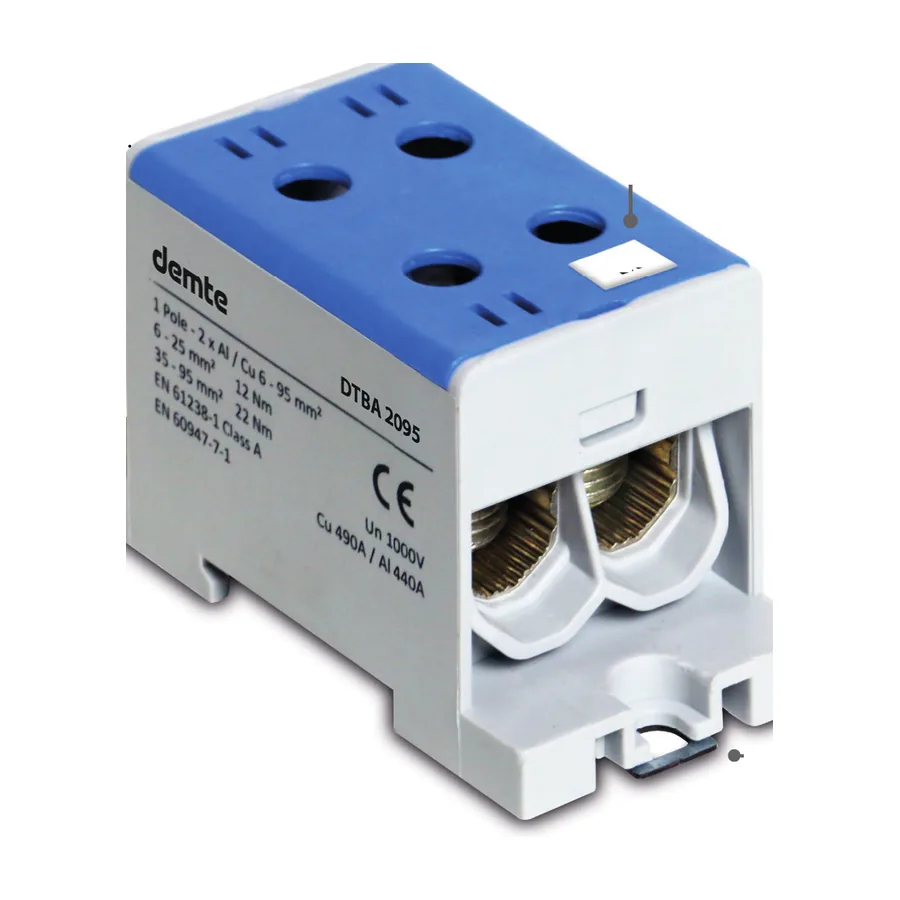

DTBA universal terminal blocks, DTDB distribution blocks and DTBB main branch terminal blocks. Single and multi-level, DIN rail mounted.
Terminal and Distribution Blocks →

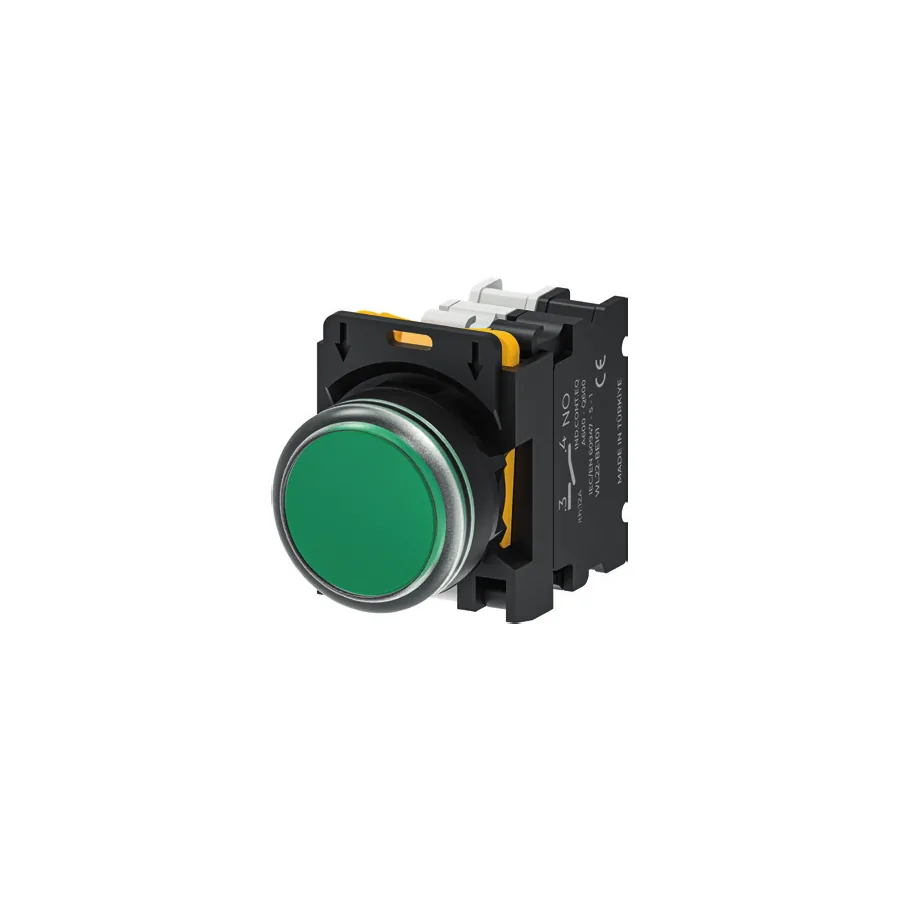

WL22 metal and chrome series push buttons, illuminated buttons, pilot lights, emergency stop and key operated series.
Push Buttons and Pilot Lights →

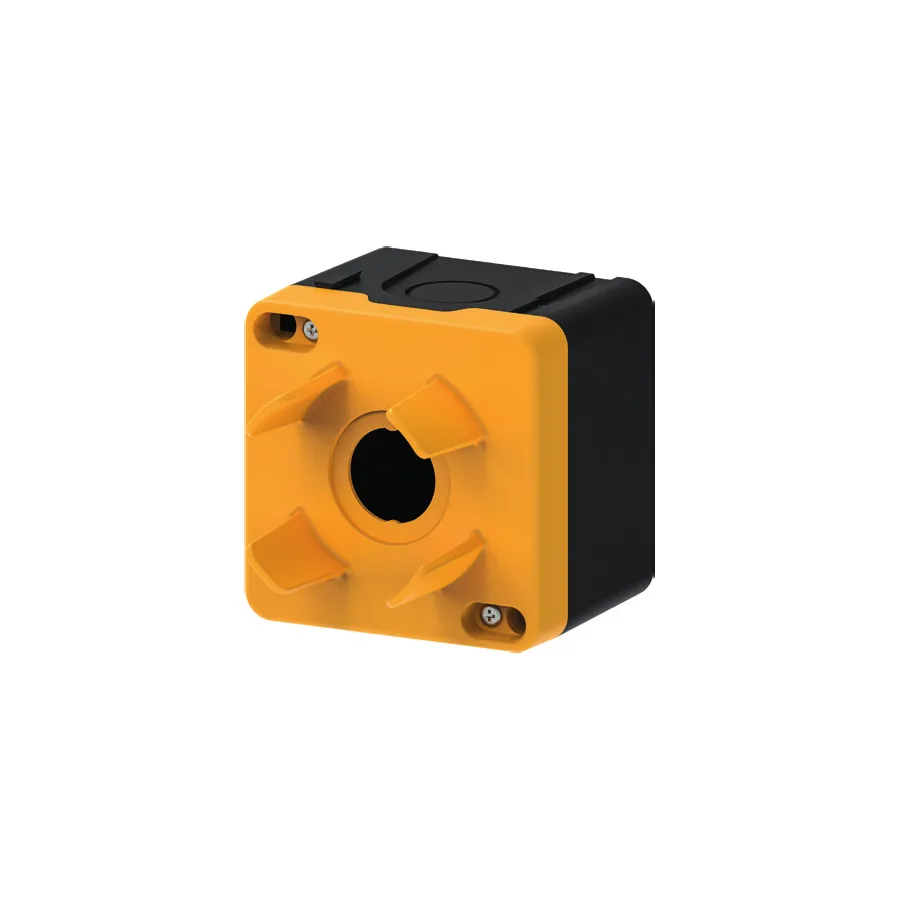

Ready-made push button enclosures with one to five holes. Yellow-black body, emergency stop and “push to stop” variants.
Push Button Enclosures →

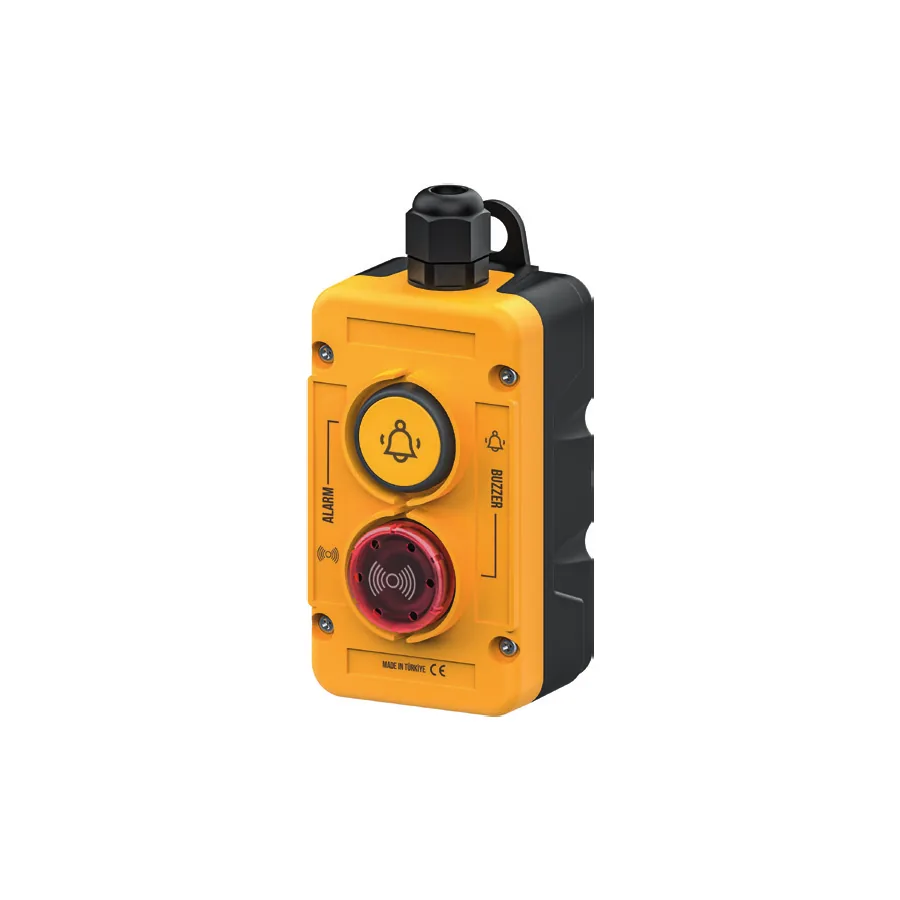

WL22-ELV combination boxes, BKB button box components and bypass panels. The most extensive section of the catalogue — 67 pages.
Elevator Combination Boxes →

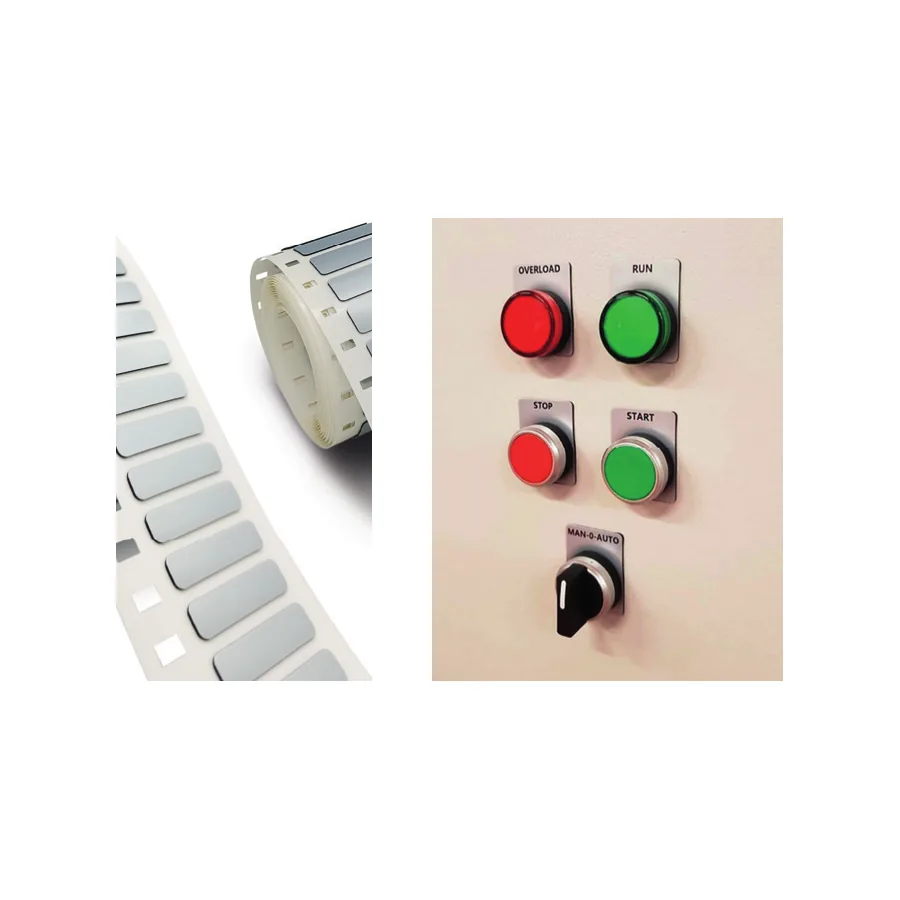

Foam-backed panel and button labels, cable labels and marking sleeves, coloured tapes, pre-printed warning labels, ribbons and printers.

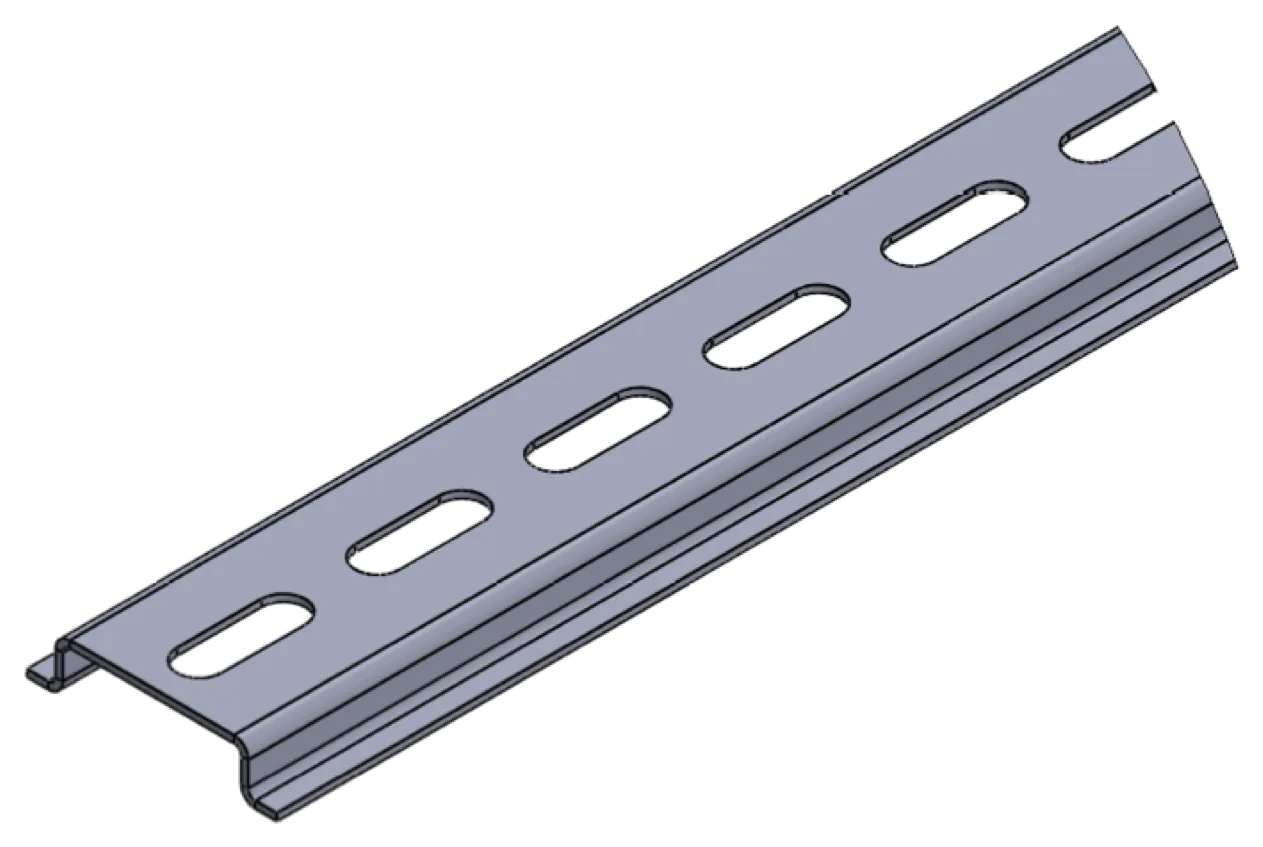

Marking and Labeling →Choose profile, hole pattern, finish and length — your reference code, a render taken from our production drawing and the technical drawing PDF appear immediately. Carry it into the quote form with one click.
Custom hole patterns, different lengths or customer-branded packaging — produced through the tooling and sampling process. Send us your technical drawing and we will come back on feasibility and minimum quantity.

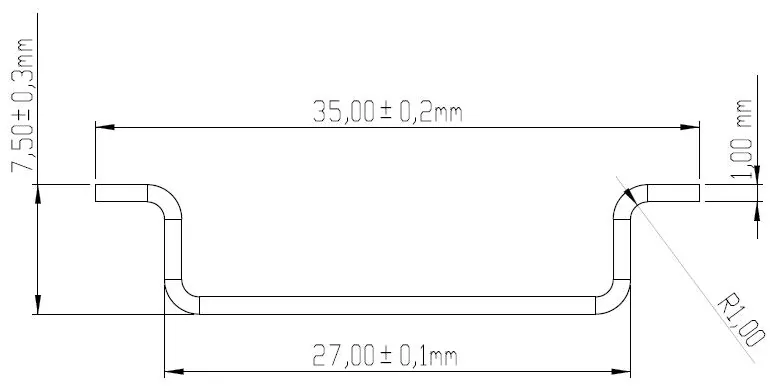

| Profile | 35 × 7.5 · top-hat profile |
|---|---|
| Standard | EN 60715 |
| Width / height | 35 / 7.5 mm |
| Sheet thickness | 1.0 mm |
| Surface finish | Pregalvanized |
| Hole pattern | 6.2 × 18 mm · 25 mm pitch |
| Length | 2000 mm |
No intermediate supplier. Steel coil goes into the plant and packed product comes out — which is why dimensional tolerance and lead time stay under our control.
Thickness and coating check of galvanized coil, then slitting.
Continuous forming of 35 mm top-hat profiles on the roll-form line.
Hole patterns and cut-to-length on high-tonnage presses.
Injection moulding of plastic box bodies and covers.
Electrostatic powder coating of metal enclosures, mounting plate fitting.
Dimensional inspection, export packing and labelling.
This section will be strengthened with real production photographs from the plant — once the line images arrive they drop straight in without changing the layout.
The same product range serves four different buying patterns.
Fixed dimensions, fixed tolerances and repeatable delivery for workshops running series production. Rail, duct, busbar and enclosure on one delivery note.
On site, speed decides. Flush and surface boards and junction boxes are prepared in project quantities.
Custom hole patterns, custom lengths and neutral or customer-branded packaging for manufacturers selling under their own brand.
A single authorised distributor per country. Container loading, export documentation and labelling support.
The first thing a buyer asks for is documentation. Once this section is complete, the biggest friction in the quotation process disappears.
The international standard that defines the dimensions, tolerances and mounting sizes of DIN rail profiles. The 35×7.5 and 35×15 profiles we make are formed to these dimensions.
Galvanized sheet grade and coating weight vary by product group. Material certificates are shared on request.
For DIN rails DT-3575-S-2000 and DT-3515-S-2000: EU declaration of conformity (EN 60715), RoHS test report and REACH declaration. Shared on request.
A REACH Article 33 declaration is available for our DIN rails DT-3575-S-2000 and DT-3515-S-2000: no SVHC candidate substances above 0.1 % by weight. Shared on request.
Protection ratings from IP40 to IP65 across the box families. Gasketed door and cable gland entry variants are intended for outdoor use.
Container shipments from our plant in Kocaeli. We work with a single authorised distributor per country — we will not compete in your market.
Samples and technical drawings sent for the references you select.
FOB / CIF pricing, container quantities and a delivery schedule.
Certificate of origin, declaration of conformity, labelling for the target market.
Country exclusivity in return for a volume commitment.
Download the full Product Catalogue 2026 or the section catalogue for the family you need — dimension tables, reference codes, drawings and packing information.
Tell us the product, the quantity and the delivery country — our technical team will come back with price and lead time. Sample requests go through this form as well.
