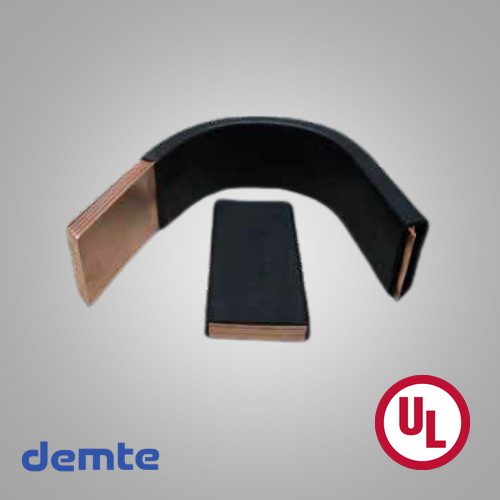

Insulated Flexible Copper Bars

• Safe and secure joints
• Time saving thanks to easy installation
• Size savings — usable in tight spaces
• Savings in cost and design work
• Easy to form and process

• Inner couplings of low voltage power panels
• Expansion joints of circuit breakers, transformers and busbars
• Earthing bands
• Electrically powered vehicles
• Coating stations
• Battery connectors
• Joints of industrial machinery and equipment

• Raw material: Cu-ETP acc. to EN 1652, Cu ≥ 99.90 %, conductivity 58 MS/m (100 % IACS), hardness 50–60 HV
• Operating temperature −20 °C to +105 °C
• Operating voltage (max.) 1000 V AC / 1500 V DC

• Special PVC compound meeting the UL94 V0 standard
• Insulation thickness 1.8 – 2.0 mm
• Lead-free and self-extinguishing
• Hardness Shore A 85 · tensile strength max. 16 N/mm² · elasticity min. 320 %
• Dielectric strength 20 kV/mm

• Standard colour black; other colours or coloured lines on request
• Standard length 2 m; up to 5 m on request
• Tin-coated copper folios on request
• Insulation rated for +125 °C or halogen-free on request

Cut and drill the bars after forming, according to the position of the joint. Drilling or cutting beforehand may deflect the drill and leave irregular folio ends, because the folios slide during forming. On site this is usually done with a busbar fabrication machine. Clamp the material firmly while drilling or band-saw cutting for occupational safety and a clean result. For joints on busbars, clamping can be used instead of drilling.
