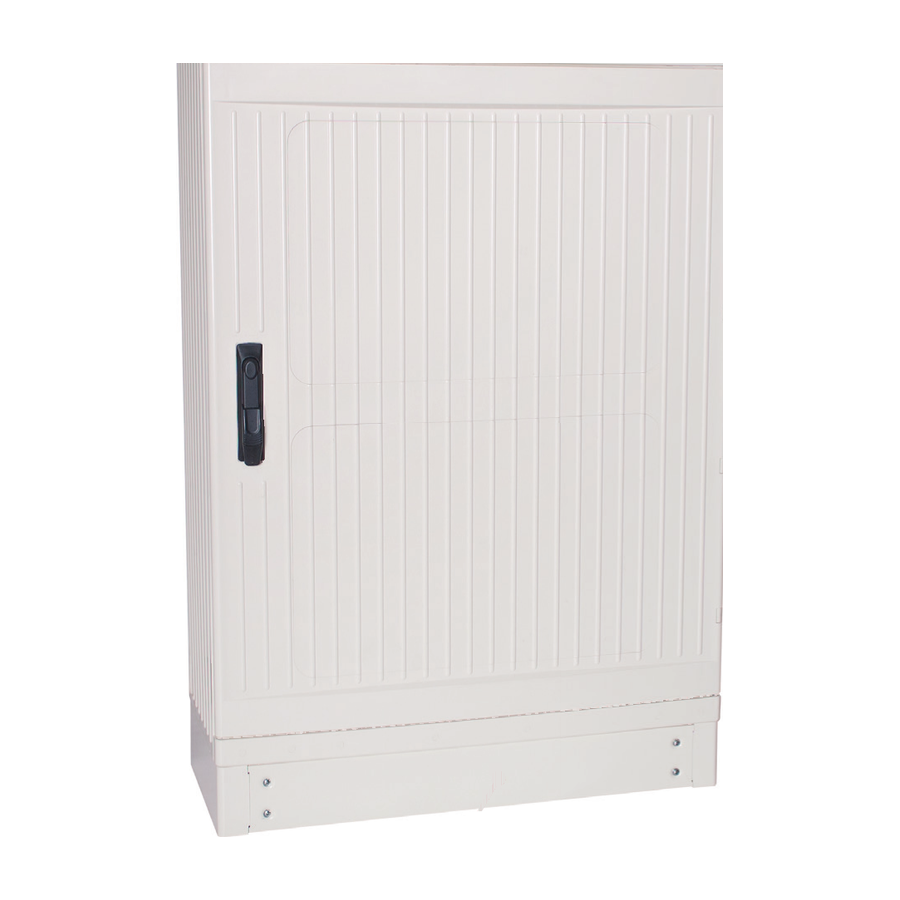

Watertight ASA Boards
IP65 special-purpose boards made of UV-resistant ASA (acrylonitrile styrene acrylate). Built for outdoor applications with high ultraviolet exposure: no colour change for at least 10 years, triple lock system, IK10 impact resistance, PUR sealing and an included 1 mm galvanized mounting plate. Operating temperature −25 to +80 °C. Watertight ASA Boards is listed with 9 reference codes.
- Reference codes
- 9
- Material
- ASA · UV resistant
- Protection
- IP65
- Impact
- IK10
Dimension and reference code table
You can paste the code straight into the quote form. Use the box below to search within the table.
Watertight ASA Board — Blank Door
| Image | Product code | Dimensions W×H×D (mm) | Locks | Pack |
|---|---|---|---|---|
 | DTA 5003 | 300x400x165 | 2 | 1 |
| DTA 5004 | 400x500x175 | 2 | 1 |
| DTA 5005 | 400x600x200 | 2 | 1 |
| DTA 5006 | 500x700x245 | 2 | 1 |
| DTA 5009 | 600x800x260 | 1 | 1 |
| DT 5023 | 750x1000x300 | 1 | 1 |
Complementary items for DT 5023
| Image | Product code | Description | Pack |
|---|---|---|---|
 | DT 5023R | Roof for DT 5023 | 1 |
| DT 5023B | Base for DT 5023 | 1 |
| DT 5023W | Wall fixing bracket set | 1 |
Catalogue
Watertight ASA Boards is listed in the catalogues below. Download the PDF for full dimensions, drawings and technical data.
Other products in this family
Other pages in the Distribution Boards family.
Request a quote for this product.
Send the code, dimensions and quantity; we will reply with price and lead time.
