Distribution Boards
Flush and surface mounting ABS boards, watertight enclosures, DIN rail boards and metering boards.
- Protection
- IP40 – IP65
- Body
- ABS · thermoplastic
- Flammability
- UL94 V0 / V2
- Mounting
- Flush · surface
Distribution boards
3 products · 95 reference codes
Distribution Boards — Flush Mounting
ABS distribution boards recessed into the wall. From 8 modules up to 90 modules (18×5); blank, transparent and smoked door options. The hinged door opens beyond 180°, and neutral and earth terminals are ready to install.
34 reference codes
Distribution Boards — Flush Mounting, Metal Body
Metal bodied flush mounting boards, from 24 to 90 modules. Smoked transparent and blank door variants, plus versions with a dedicated low-current section — where one automat row is given over to weak current, so the usable module count is lower.
12 reference codes

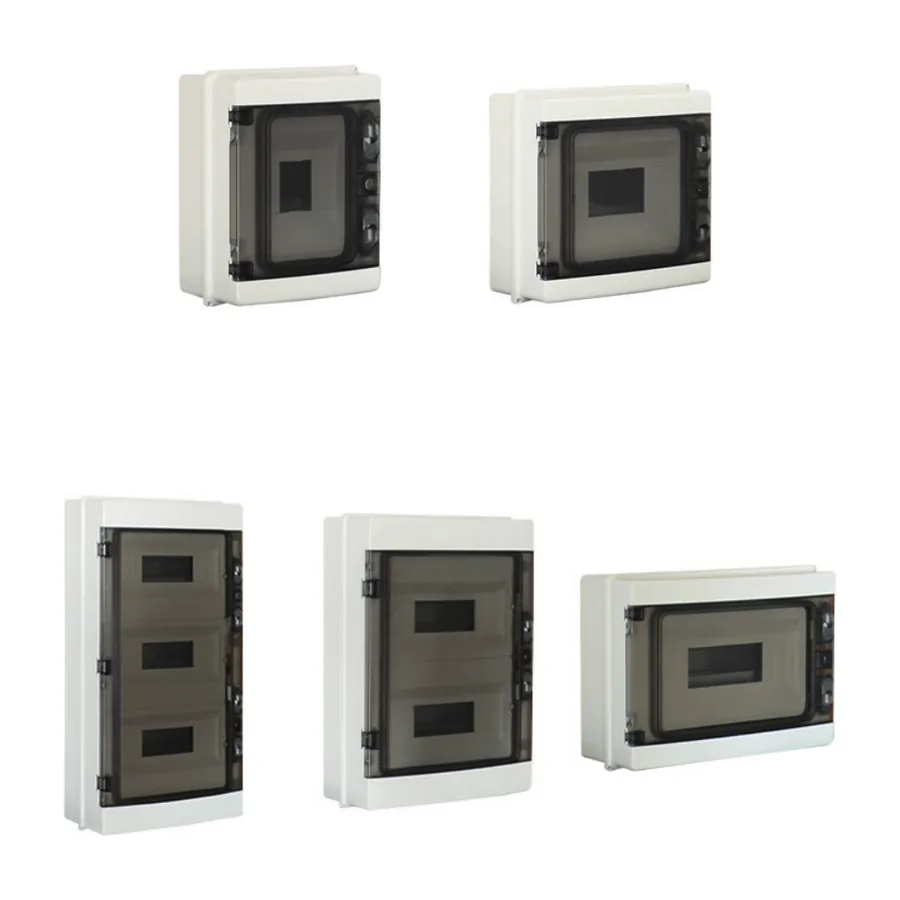

Distribution Boards — Surface Mounting
ABS distribution boards mounted on the wall surface. From 2 to 42 modules; metal key and terminal bar included for the DT39XX range.
49 reference codesWatertight boards
4 products · 65 reference codes
Watertight Boards — Blank Door
Gasketed watertight boards with blank door. Bodies from 210×280×130 to 500×700×245; single and double lock.
19 reference codes
Watertight Boards — Transparent Door
Watertight boards with transparent door; meters are read without opening the enclosure.
20 reference codes
Watertight Boards — With Roof
Watertight boards with a rain roof on top; for outdoor wall mounting.
17 reference codes
Watertight ASA Boards
IP65 special-purpose boards made of UV-resistant ASA (acrylonitrile styrene acrylate). Built for outdoor applications with high ultraviolet exposure: no colour change for at least 10 years, triple lock system, IK10 impact resistance, PUR sealing and an included 1 mm galvanized mounting plate. Operating temperature −25 to +80 °C.
9 reference codesPurpose-built boards
2 products · 36 reference codes
Distribution Boards — With DIN Rail
Watertight distribution boards carrying an internal DIN rail. From 8 to 72 modules; ready for MCB and modular device mounting.
18 reference codes

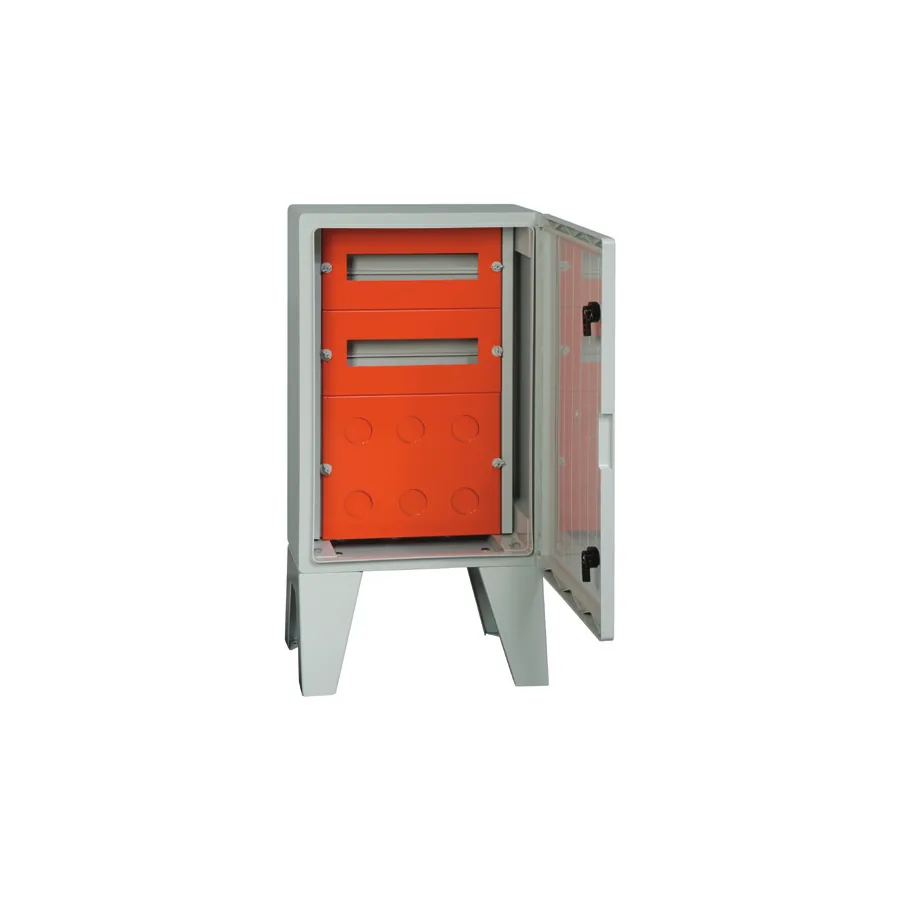

Metering Boards
Boards prepared for monophase and triphase meter installation. Meter compartment plus 2–15 MCB positions; blank and transparent door.
18 reference codesDistribution Boards — technical overview
What this family covers
A distribution board is where incoming supply is split into circuits and where every circuit gets its protective device. Demte produces the full range in ABS and thermoplastic, plus metal-bodied and watertight versions, so the same catalogue covers a flat's consumer unit, a meter cabinet and an outdoor board on a site boundary.
The ranges
- Flush mounting — recessed into the wall, blank or smoked transparent door, plastic or metal body, with an optional weak-current section.
- Surface mounting — fitted to the wall face where chasing is not possible, including IP65 versions and a black toner finish.
- DIN rail boards — compact boards built around a rail for small circuit counts.
- Metering boards — prepared for monophase and triphase meter installation, with a meter compartment plus 2 to 15 MCB positions.
- Watertight boards — blank door, transparent door, with-roof and ASA-bodied versions for wet and outdoor positions.
Design features carried across the range
- Hinged door opening more than 180°, so the door swings clear of the board instead of blocking access while work is in progress.
- Ready to install terminal blocks for neutral and earth connections — the bars are prepared rather than added on site.
- Ergonomic opening and closing, with blank or smoked transparent doors.
- Pre-drilled entries on the polycarbonate cover-version boards for faster installation.
- Weak-current option — where it is specified, a one-row automat section becomes a low-current section for data and signal equipment.
Materials and ratings
Bodies are ABS and thermoplastic with UL94 V0 / V2 flammability classes; cover-version boards are polycarbonate, resistant to chemical and weathering agents. Protection runs from IP40 to IP65 depending on the range, with an operating temperature of −25 °C to +60 °C.
Frequently asked questions
What is the weak-current section for?
For low-voltage data and signal equipment — routers, splitters, alarm and bell transformers — kept in the same board but separated from the power circuits. Where the option is specified, one automat row is converted into that section.
Which range should I use outdoors?
The watertight ranges. Blank-door and transparent-door versions cover most positions; the with-roof versions add a rain hood, and the ASA-bodied boards use a UV-resistant material for direct sunlight.
Blank door or smoked transparent door?
A transparent door lets the state of the breakers be read without opening the board, which suits installations that are checked often. A blank door keeps the interior out of sight and out of reach in public or semi-public positions.
