Panel Accessories
Cable glands, spiral conduits, cable ties and lugs, busbars, insulators and panel hardware.
- Glands
- IP68 · 5 bar
- Thread
- Metric · PG (EN 60423)
- Material
- Polyamide · brass
- Colour
- RAL 7001/7035/9005
Busbars, sockets and panel hardware
4 products · 68 reference codes
Document Pockets
ABS document pockets fixed to the panel door with adhesive or screws. A4, A5, A6 and mini sizes, RAL 9003; halogen-free on request.
4 reference codes
Low Voltage Standoff Insulators
Standoff insulators carrying busbars and conductors. Body heights from 20 mm to 100 mm, M5–M10 thread; with service and test voltage ratings.
46 reference codes

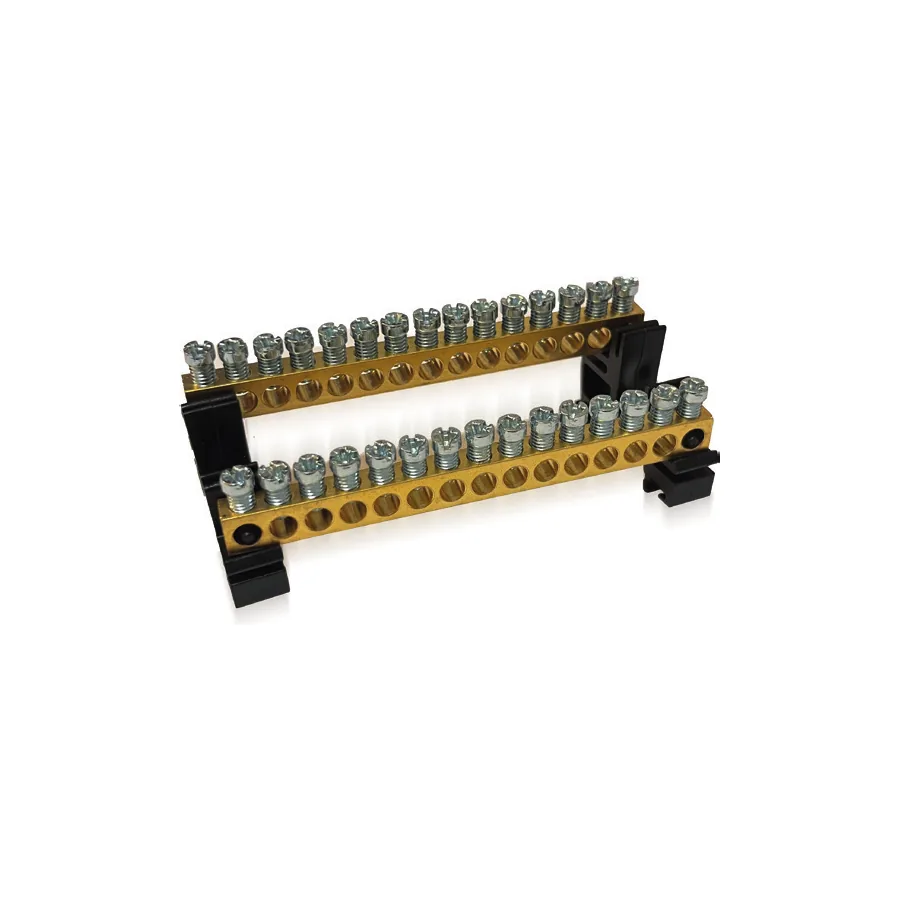

Neutral and Ground Busbars
Screw-on and flat copper neutral/ground busbars. Bodies with 7, 9, 12 and 15 holes; black, green and blue; 80 A, 690 V.
16 reference codes
DIN Rail Power Sockets
Socket mounted on DIN rail inside the panel. Schuko and Cenelec, 2P+PE, 16 A; M3.5 screw connection, 0.2–4 mm² cross section.
2 reference codesCable fixing and lugs
4 products · 98 reference codes
Medium Voltage Cable Cleats
Cleats holding medium voltage cables against short-circuit forces. Chemically resistant, halogen-free and fully recyclable body; custom production on request.
6 reference codes

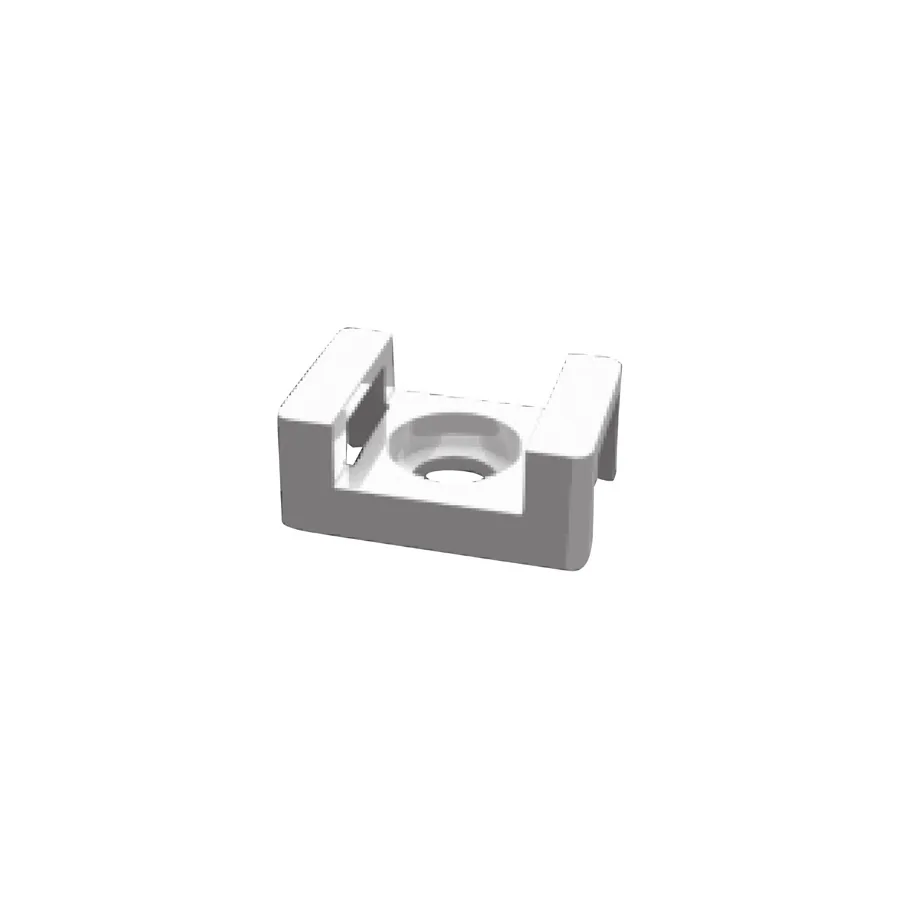

Cable Tie Mounts
Self-adhesive and screwed cable tie mounts. Body sizes from 20×20 to 40×40, for 3.6–9 mm tie widths.
5 reference codes
Cable Ties
Halogen-free, flame-resistant polyamide cable ties. Sizes from 2.5×100 to 9×1000; white and black, cold-resistant structure with low brittleness.
52 reference codes

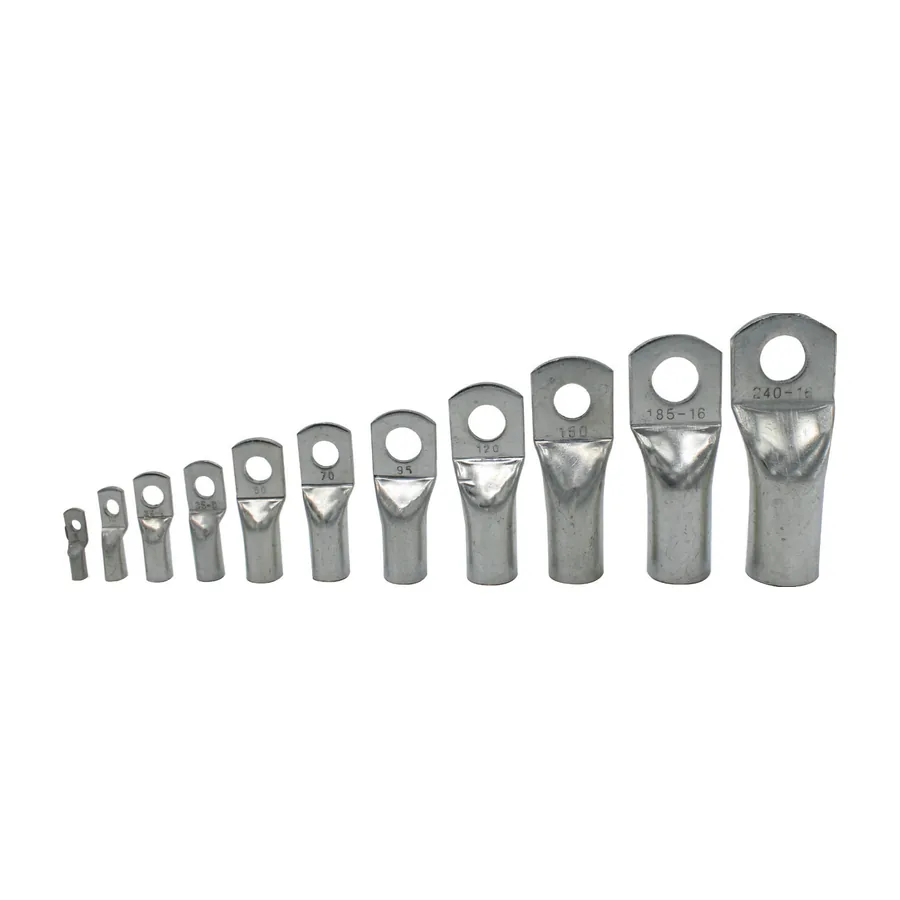

Cable Lugs
Crimp-type copper cable lugs. Cross sections from 6 mm² to 240 mm², hole diameters 4–12 mm.
35 reference codesCable glands
5 products · 56 reference codes
Polyamide Cable Glands — Metric
PA6 V2 cable glands with metric thread. IP68 5 bar with O-ring, −20 °C to +100 °C, VDE approved and halogen-free; RAL 7001, RAL 7035 and RAL 9005 bodies.
12 reference codes
Polyamide Cable Glands — PG
Polyamide cable glands with PG thread. Same body and seal as the metric series, DIN 40430 connection thread; PG 7 to PG 48.
12 reference codes

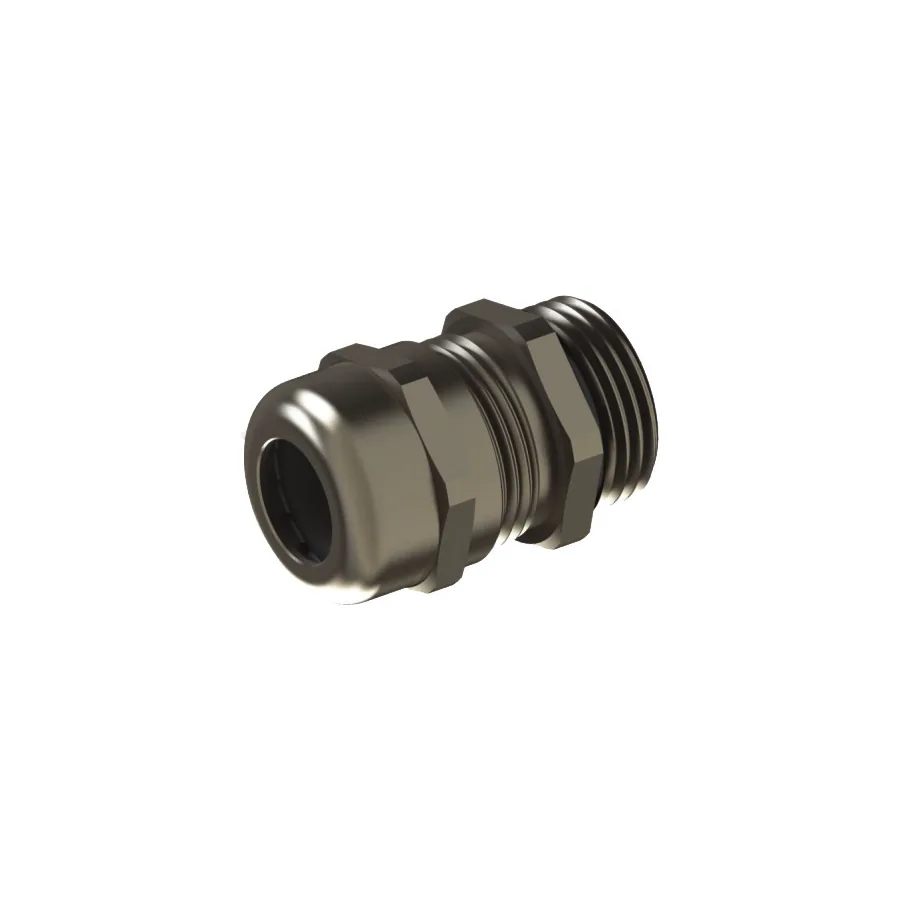

Brass Cable Glands — Metric
Nickel-plated brass cable glands with metric thread. For metal enclosures and EMC-critical applications.
9 reference codes

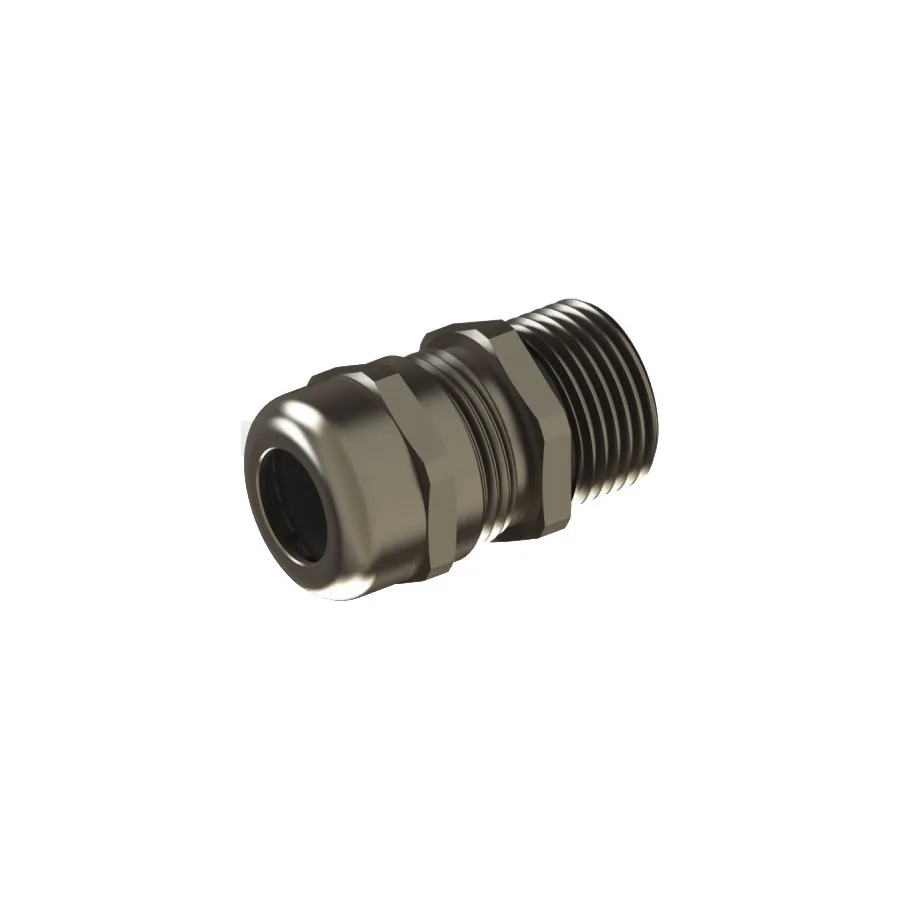

Brass Cable Glands — PG
Nickel-plated brass cable glands with PG thread.
11 reference codes

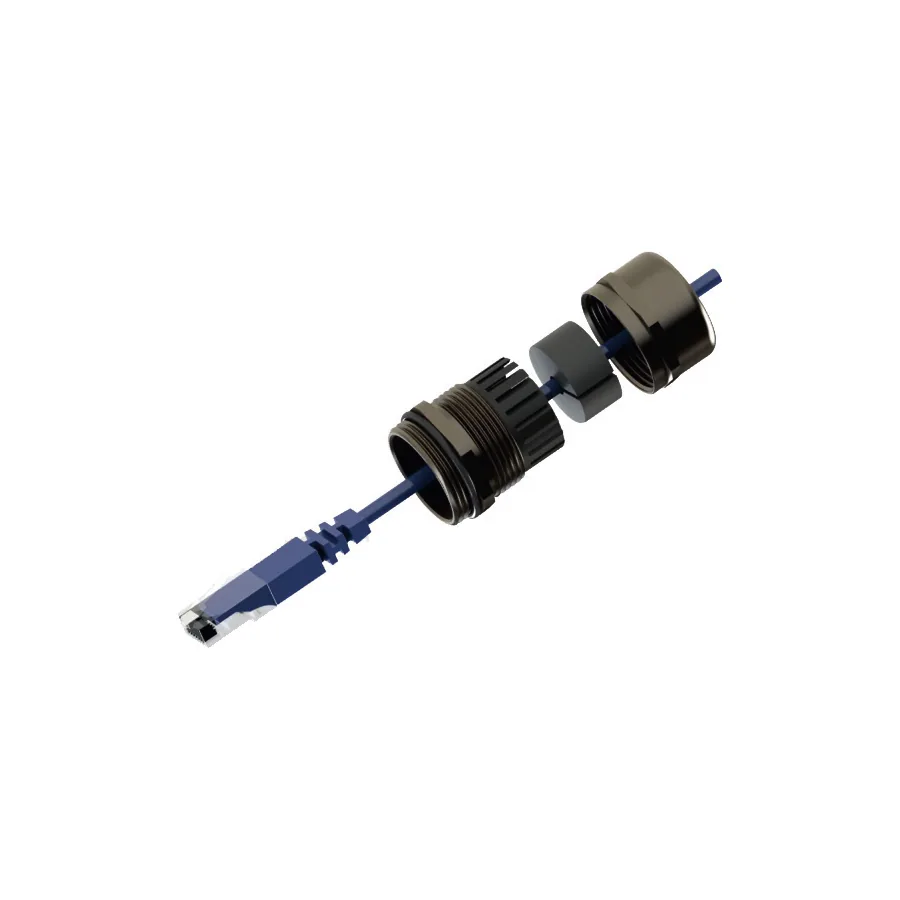

RJ-45 Cable Glands
Glands with a split seal that lets an RJ-45 cable pass without removing the connector. Polyamide and nickel-plated brass bodies, metric and PG thread.
12 reference codesSpiral conduits
7 products · 67 reference codes
PA6 UV Resistant Spiral Conduits
PA6 V2 spiral conduit for outdoor and on-vehicle use. ISO 4892-2 UV tested, −40 °C to +120 °C, UL94 V2, halogen-free.
12 reference codes

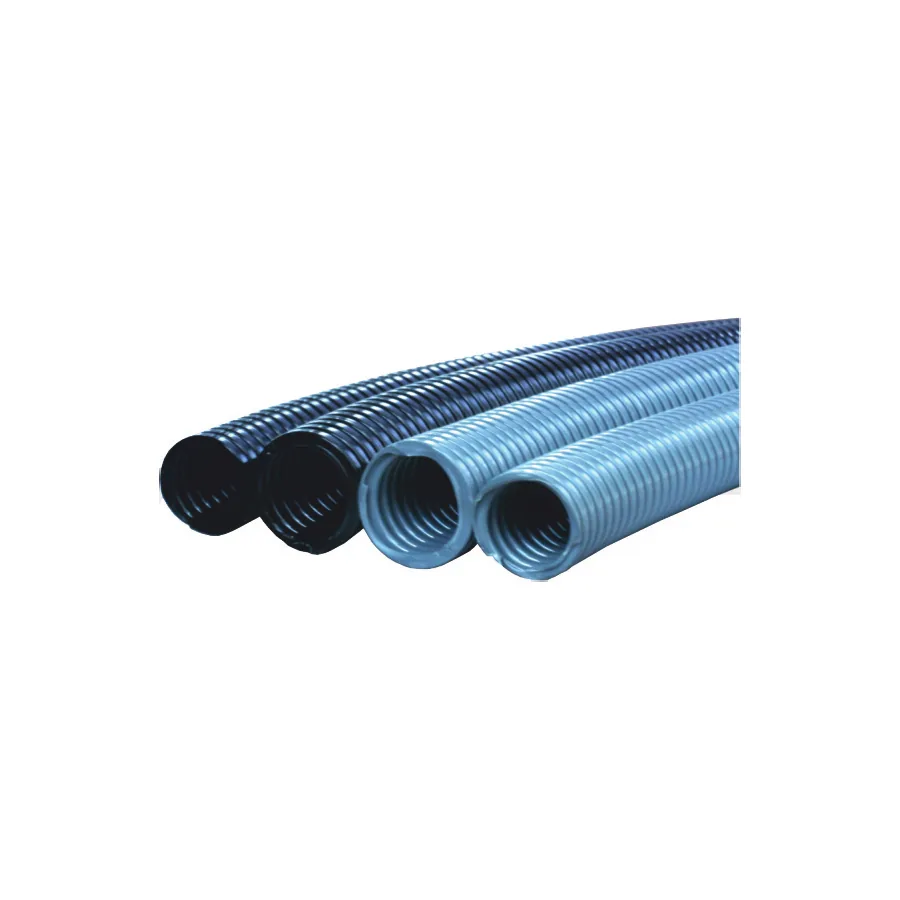

V0 Spiral Conduits
Self-extinguishing UL94 V0 class spiral conduit. Grey RAL 7031 and black RAL 9005.
8 reference codes

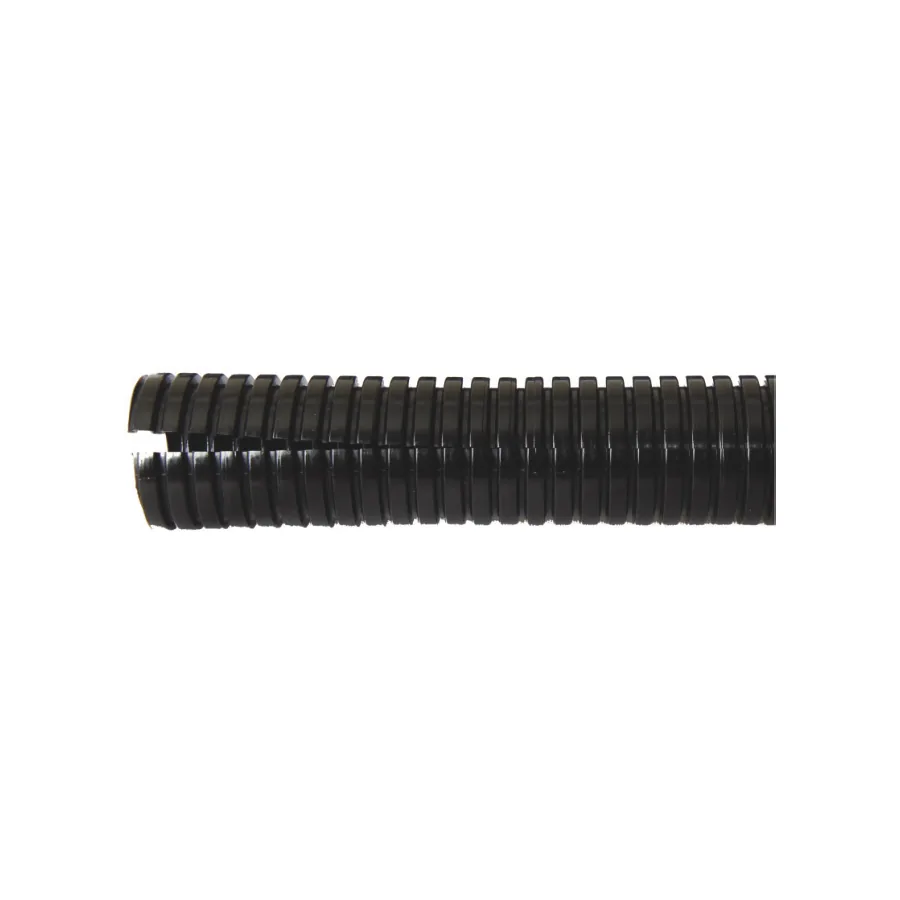

Split Type Spiral Conduits
Longitudinally split spiral conduit: it can be fitted over cables that are already installed. For maintenance on existing runs.
10 reference codes

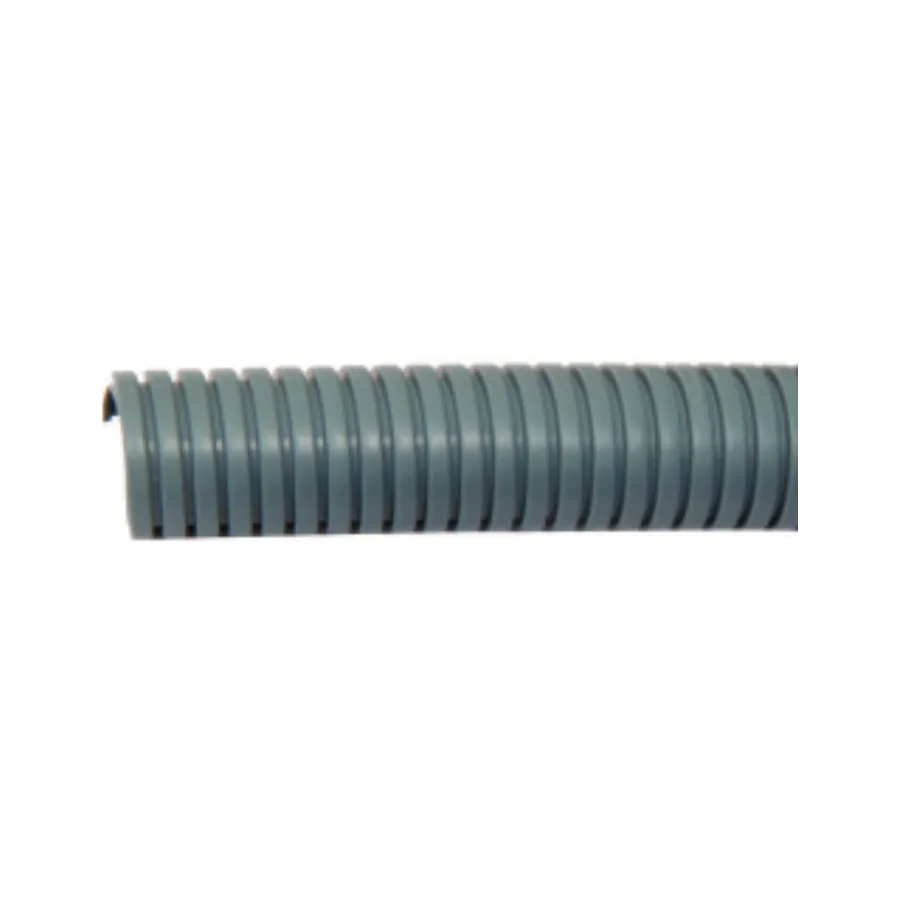

Polypropylene Spiral Conduits
Polypropylene spiral conduit. High chemical resistance, economical series.
10 reference codes
Polypropylene Split Spiral Conduits
Split type polypropylene spiral conduit.
11 reference codes

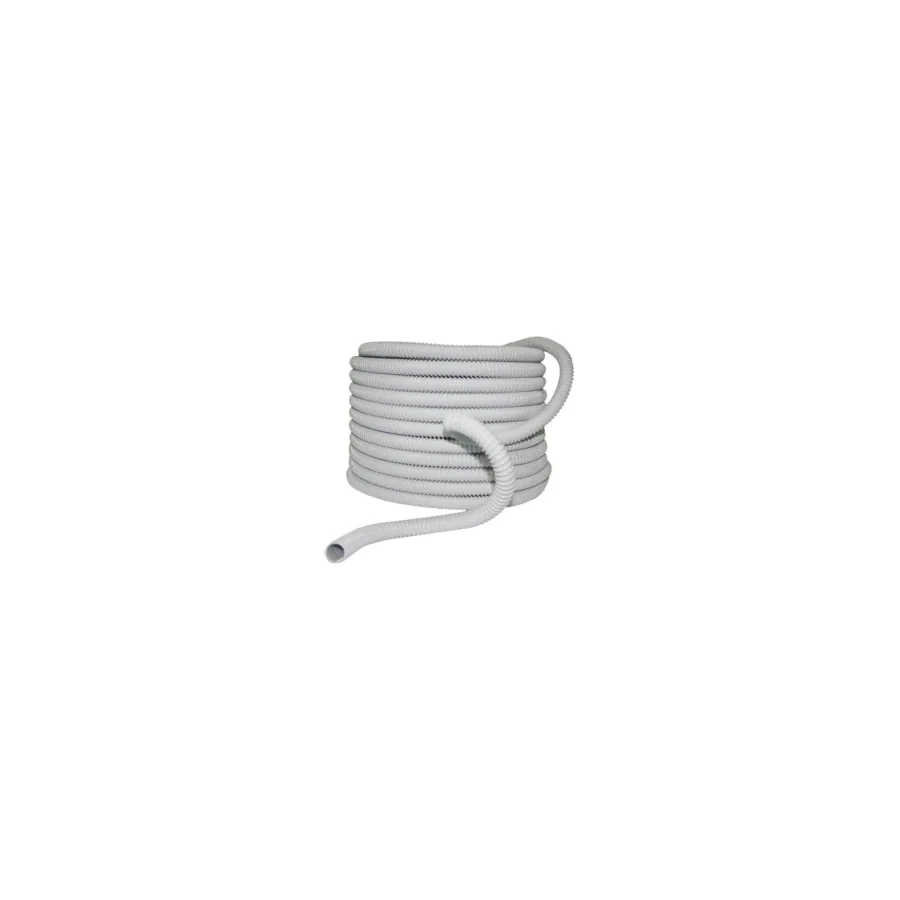

PVC Spiral Conduits
PVC spiral conduit. Nominal diameters from 8 mm to 60 mm.
15 reference codes
Oval Corrugated Conduits
Oval section corrugated conduit for flat cable bundles.
1 reference codesConduit glands and clips
5 products · 50 reference codes

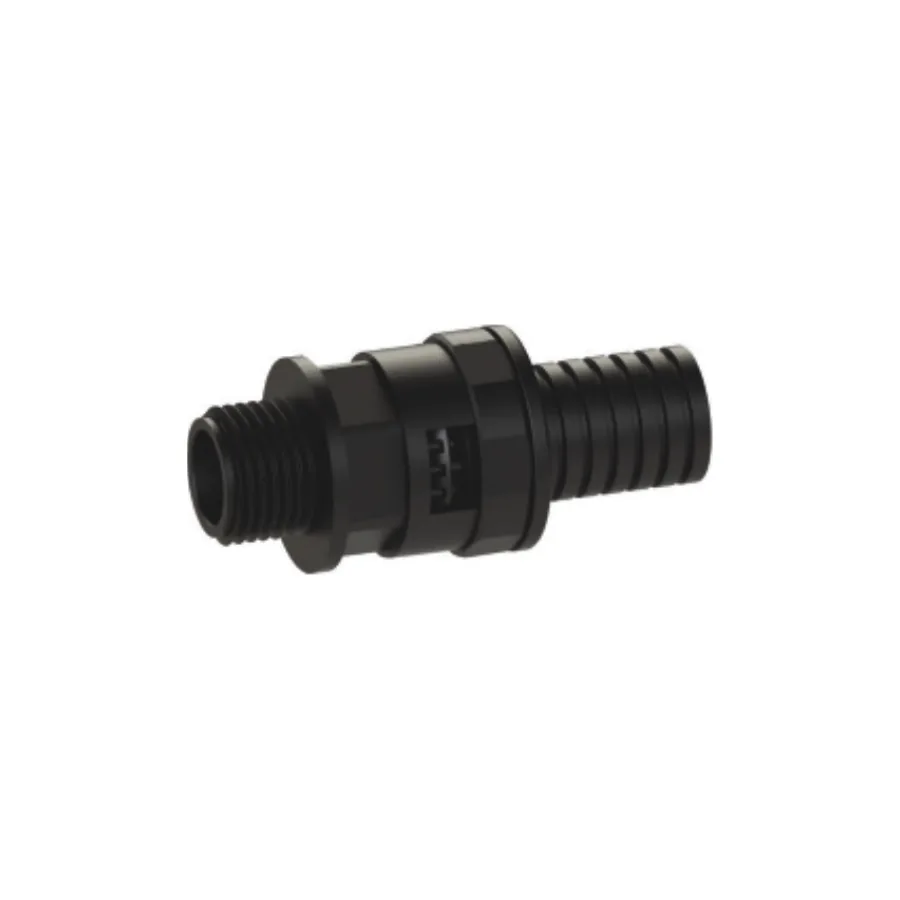

Conduit Glands — Metric Thread
Polyamide glands with metric thread that connect spiral conduit to the enclosure. PA6 V2, −40 °C to +120 °C, halogen-free.
10 reference codes
Conduit Glands — 90° Elbow
Elbow type conduit gland that turns the cable 90° inside a shallow enclosure.
10 reference codes

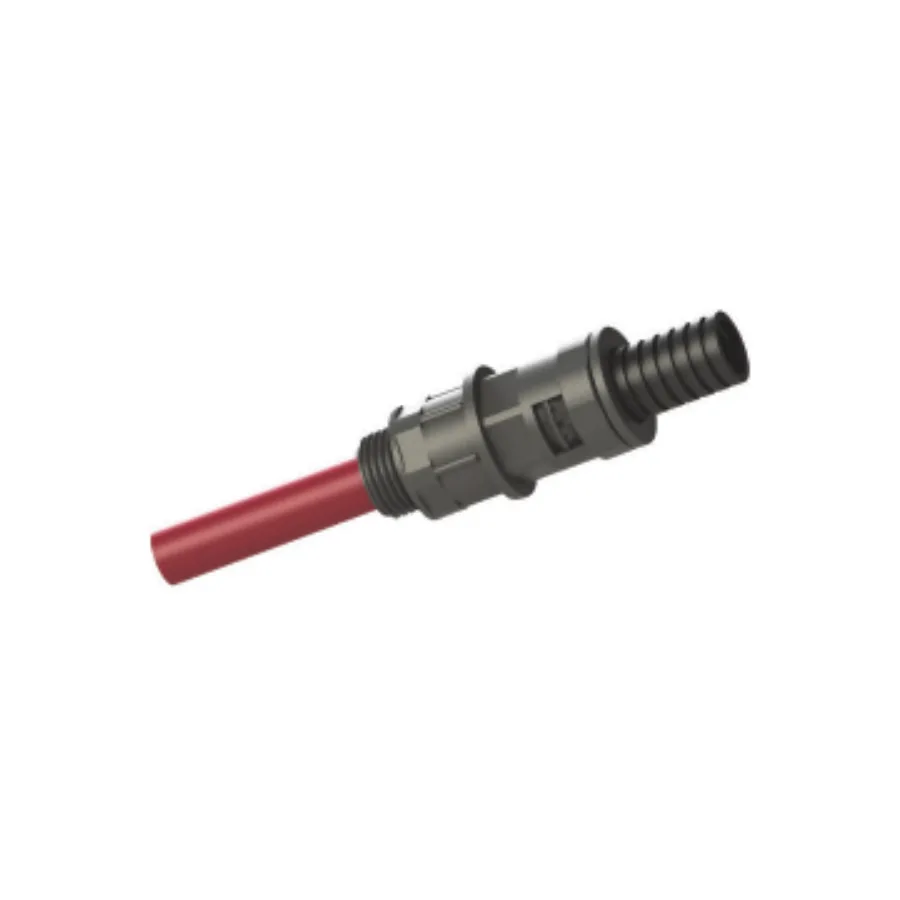

Conduit Glands with Cable Holder
Dual-function gland that clamps both the spiral conduit and the cable. IP54.
14 reference codes

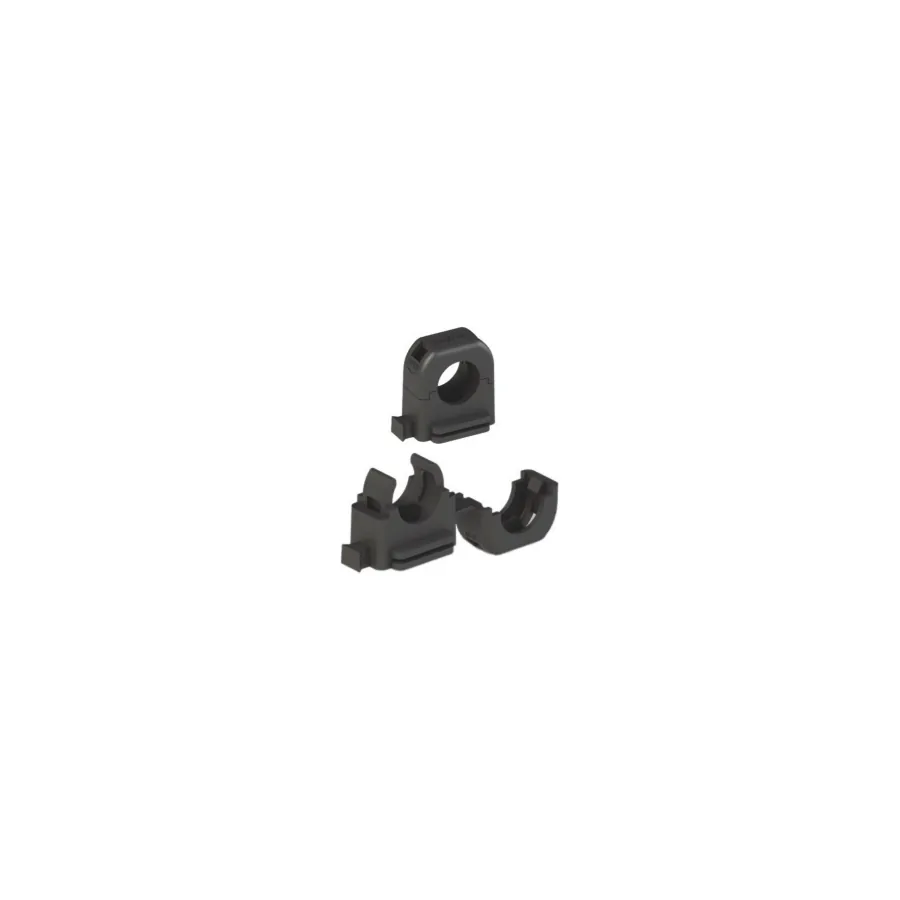

Conduit Clips
Polyamide clips fixing spiral conduit to a surface.
7 reference codes

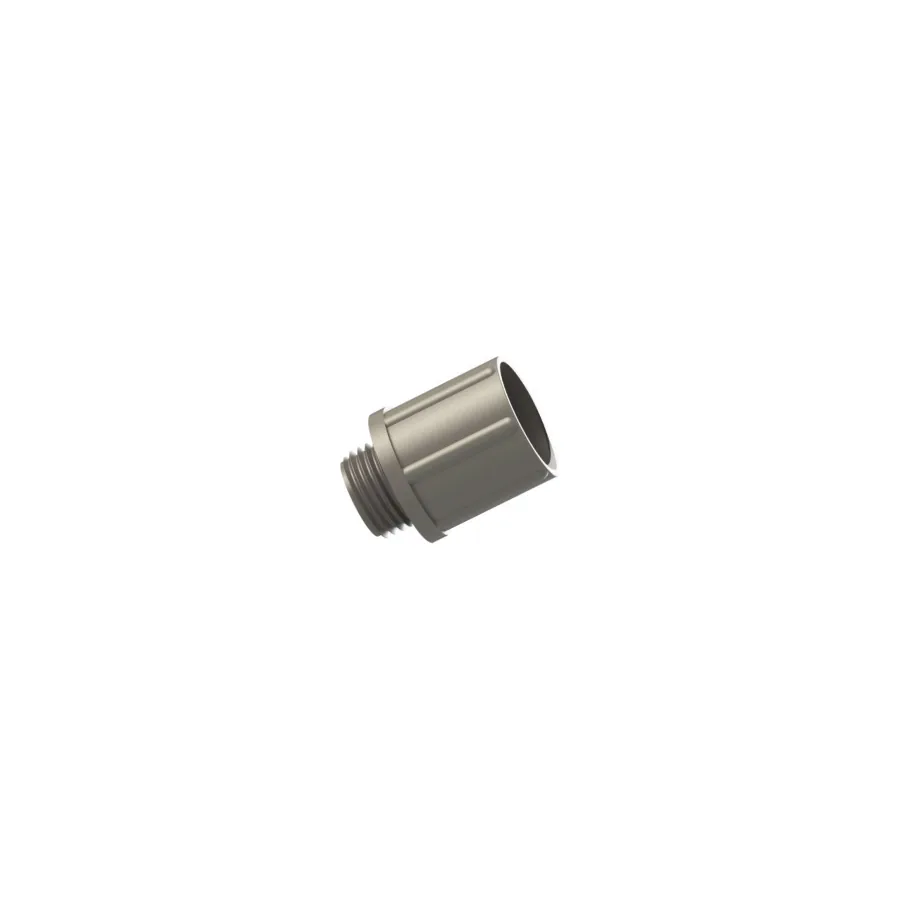

Pipe Glands — PVC / Metal
Polyamide glands for PVC and metal pipe entries.
9 reference codesPanel Accessories — technical overview
What this family covers
Panel accessories are the parts that turn a set of devices into a finished, maintainable panel: the entries cables pass through, the conduits and ties that hold them, the lugs that terminate them, and the bars and insulators that carry current between them. It is the largest family in the catalogue because a single panel uses dozens of these parts.
Cable glands
Glands seal the point where a cable enters the enclosure and take the strain off the terminal.
- Polyamide glands — metric thread to EN 60423 or PG thread to DIN 40430, operating from −20 °C to +100 °C and up to +150 °C short term.
- Brass glands — nickel-plated, metric and PG, with the same thread standards and a −20 °C to +100 °C range, up to +150 °C short term.
- RJ45 glands — polyamide PA6 V2 body with a TPV seal made for RJ-45 cables, so a data lead can pass through a sealed entry with its connector.
- Threads are supplied in zinc-coated steel as standard, with brass, stainless steel and 8.8 grade steel available on request. Halogen-free versions are available on request.
Conduits and cable management
Spiral conduits in PVC, polypropylene, split and non-split forms, PA6 UV-resistant conduit for outdoor and on-vehicle use, and V0 conduit where flammability class is specified. Conduit glands and clips fix the conduit to the surface and into the enclosure; cable ties and self-adhesive or screwed tie mounts hold the bundles, with halogen-free material and a cold-resistant structure.
Current-carrying and fixing parts
Cable lugs, copper busbars, low-voltage standoff insulators and medium-voltage cable cleats. The cleats are tested to IEC 61914:2015 and are suitable against high short-circuit levels — the force that throws cables apart during a fault is what cleats exist to resist. Document pockets and panel-mounted power sockets complete the range.
Frequently asked questions
Which gland thread should I specify, metric or PG?
Metric threads follow EN 60423 and are the modern default for new panels. PG threads follow DIN 40430 and are specified when matching existing equipment or an established plant standard.
Are halogen-free versions available?
Yes, on request, for the glands and for the cable tie mounts. Halogen-free material is usually specified where smoke toxicity in a fire is a design constraint.
What makes medium-voltage cable cleats different from a cable tie?
A cleat is engineered to hold cables in place during a short circuit, when the electromagnetic force between conductors tries to throw them apart. The range is tested to IEC 61914:2015 for that duty.
