DIN Rail Systems
DIN Rail Cutter Tools
Burr-free, waste-free rail cutters. One-, three- and four-socket models; 1.5 mm cutting thickness, 50 cm length stop, unblunt blade. The DT4M series also punches Ø8 mm holes. DIN Rail Cutter Tools is listed with 5 reference codes.
- Reference codes
- 5
- Standard
- EN 60715
- Profile
- 35×7.5 (1.0 mm) · 35×15 (1.5 mm)
- Hole pattern
- 6.2×18 · 5.2×18 · unslotted
01
Dimension and reference code table
You can paste the code straight into the quote form. Use the box below to search within the table.
| Image | Product code | Sockets | Cutting capacity | Punching | Length stop | Weight | Dimensions (cm) |
|---|---|---|---|---|---|---|---|

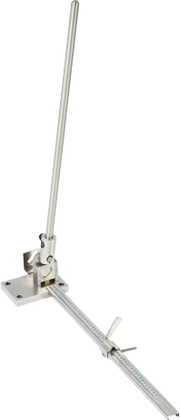

 | DT1M-01 | 1 socket | Rail 7.5×35 mm | — | 50 cm | ~6 kg | 15 × 77 × 72 |

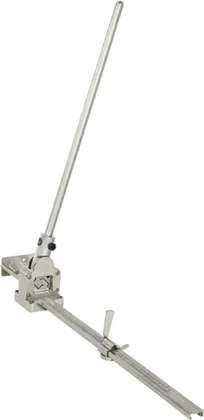

 | DT3M-01 | 3 sockets | Rail 7.5×35 · 15×35 mm · tie rod Ø8 mm | — | 50 cm | ~8 kg | 10 × 85 × 90 |

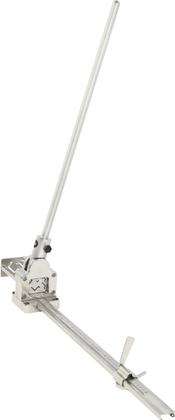

 | DT3M-02 | 3 sockets | Rail 5.5×15 · 7.5×35 · 15×35 mm | — | 50 cm | ~8 kg | 10 × 85 × 90 |

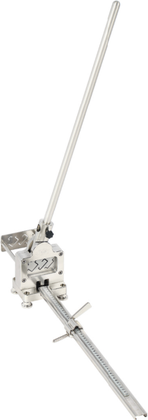

 | DT4M-01 | 4 sockets | Rail 5.5×15 · 7.5×35 · 15×32 · 15×35 mm | Ø8 mm | 50 cm | ~10 kg | 13 × 85 × 90 |

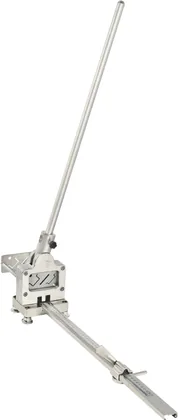

 | DT4M-02 | 4 sockets | Rail 7.5×35 · 15×32 mm · copper 3×30 mm · tie rod Ø8 mm | Ø8 mm | 50 cm | ~10 kg | 13 × 85 × 90 |
02
Catalogue
DIN Rail Cutter Tools is listed in the catalogues below. Download the PDF for full dimensions, drawings and technical data.
03
Other products in this family
Other pages in the DIN Rail Systems family.
Next step
Request a quote for this product.
Send the code, dimensions and quantity; we will reply with price and lead time.
