Marking and Labeling

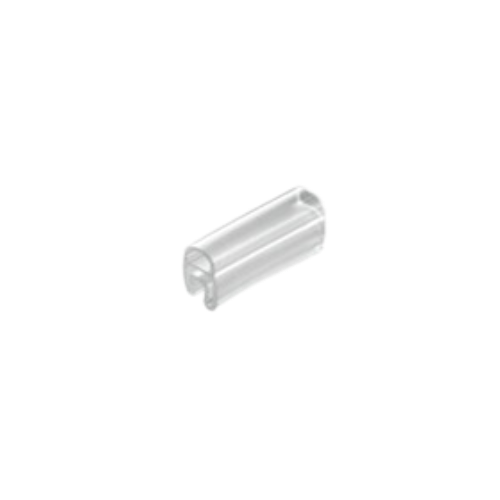

Transparent Cable Marking Sleeves
Transparent PVC sleeves printed with a thermal transfer printer and slid over the conductor. ID200 to ID204 series for 0.5 mm² to 6 mm² cables, 10–30 mm lengths. Transparent Cable Marking Sleeves is listed with 35 reference codes.
- Reference codes
- 35
- Type
- Transparent sleeve
- Section
- 0.5 – 6 mm²
- Length
- 10 – 30 mm
01
Dimension and reference code table
You can paste the code straight into the quote form. Use the box below to search within the table.
ID200 series
| Image | Product code | Cable size (mm²) | Length (L) | Pack (pcs.) |
|---|---|---|---|---|
 | ID200/10 | 0,5-1,50mm² | 10mm | 3.000 |
| ID200/12 | 0,5-1,50mm² | 12mm | 2.500 |
| ID200/15 | 0,5-1,50mm² | 15mm | 1.750 |
| ID200/18 | 0,5-1,50mm² | 18mm | 1.500 |
| ID200/20 | 0,5-1,50mm² | 20mm | 1.500 |
| ID200/23 | 0,5-1,50mm² | 23mm | 1.000 |
| ID200/30 | 0,5-1,50mm² | 30mm | 750 |
ID201 series
| Image | Product code | Cable size (mm²) | Length (L) | Pack (pcs.) |
|---|---|---|---|---|
| ID201/10 | 1,5-2,50mm² | 10mm | 3.000 |
| ID201/12 | 1,5-2,50mm² | 12mm | 2.500 |
| ID201/15 | 1,5-2,50mm² | 15mm | 2.000 |
| ID201/18 | 1,5-2,50mm² | 18mm | 1.500 |
| ID201/20 | 1,5-2,50mm² | 20mm | 1.500 |
| ID201/23 | 1,5-2,50mm² | 23mm | 1.000 |
| ID201/30 | 1,5-2,50mm² | 30mm | 1.000 |
ID202 series
| Image | Product code | Cable size (mm²) | Length (L) | Pack (pcs.) |
|---|---|---|---|---|
| ID202/10 | 2,5-4,0mm² | 10mm | 2.500 |
| ID202/12 | 2,5-4,0mm² | 12mm | 2.000 |
| ID202/15 | 2,5-4,0mm² | 15mm | 1.750 |
| ID202/18 | 2,5-4,0mm² | 18mm | 1.500 |
| ID202/20 | 2,5-4,0mm² | 20mm | 1.250 |
| ID202/23 | 2,5-4,0mm² | 23mm | 1.000 |
| ID202/30 | 2,5-4,0mm² | 30mm | 750 |
ID203 series
| Image | Product code | Cable size (mm²) | Length (L) | Pack (pcs.) |
|---|---|---|---|---|
| ID203/10 | 6,0-10mm² | 10mm | 2.500 |
| ID203/12 | 6,0-10mm² | 12mm | 2.000 |
| ID203/15 | 6,0-10mm² | 15mm | 1.500 |
| ID203/18 | 6,0-10mm² | 18mm | 1.500 |
| ID203/20 | 6,0-10mm² | 20mm | 1.000 |
| ID203/23 | 6,0-10mm² | 23mm | 1.000 |
| ID203/30 | 6,0-10mm² | 30mm | 500 |
ID204 series
| Image | Product code | Cable size (mm²) | Length (L) | Pack (pcs.) |
|---|---|---|---|---|
| ID204/10 | 16-35mm² | 10mm | 750 |
| ID204/12 | 16-35mm² | 12mm | 600 |
| ID204/15 | 16-35mm² | 15mm | 500 |
| ID204/18 | 16-35mm² | 18mm | 500 |
| ID204/20 | 16-35mm² | 20mm | 500 |
| ID204/23 | 16-35mm² | 23mm | 400 |
| ID204/30 | 16-35mm² | 30mm | 250 |
02
Other products in this family
Other pages in the Marking and Labeling family.
Next step
Request a quote for this product.
Send the code, dimensions and quantity; we will reply with price and lead time.
