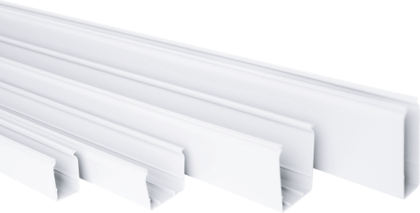

Wiring Ducts — Non-Slotted

Wiring ducts with closed side walls, without slots. For runs where the cable must not leave the duct. Wiring Ducts — Non-Slotted is listed with 24 reference codes.

Request a quote Back to the family

Reference codes: 24
Slot: 4 mm · 6 mm
Body: PVC
Cover: Snap-on

Dimension and reference code table

You can paste the code straight into the quote form. Use the box below to search within the table.

Product code	Dimensions (mm)	Colour	Packing
NS-DTWD 2525G	25x25	RAL 7030 Grey	60x2 m.
NS-DTWD 2540G	25x40	RAL 7030 Grey	50x2 m.
NS-DTWD 2560G	25x60	RAL 7030 Grey	30x2 m.
NS-DTWD 2580G	25x80	RAL 7030 Grey	24x2 m.
NS-DTWD 2510G	25x100	RAL 7030 Grey	16x2 m.
NS-DTWD 4025G	40x25	RAL 7030 Grey	40x2 m.
NS-DTWD 4040G	40x40	RAL 7030 Grey	26x2 m.
NS-DTWD 4060G	40x60	RAL 7030 Grey	18x2 m.
NS-DTWD 4080G	40x80	RAL 7030 Grey	24x2 m.
NS-DTWD 4010G	40x100	RAL 7030 Grey	20x2 m.
NS-DTWD 6040G	60x40	RAL 7030 Grey	18x2 m.
NS-DTWD 6060G	60x60	RAL 7030 Grey	24x2 m.
NS-DTWD 6080G	60x80	RAL 7030 Grey	18x2 m.
NS-DTWD 6010G	60x100	RAL 7030 Grey	12x2 m.
NS-DTWD 8040G	80x40	RAL 7030 Grey	24x2 m.
NS-DTWD 8060G	80x60	RAL 7030 Grey	16x2 m.
NS-DTWD 8080G	80x80	RAL 7030 Grey	12x2 m.
NS-DTWD 8010G	80x100	RAL 7030 Grey	8x2 m.
NS-DTWD 1060G	100x60	RAL 7030 Grey	12x2 m.
NS-DTWD 1080G	100x80	RAL 7030 Grey	10x2 m.
NS-DTWD 1010G	100x100	RAL 7030 Grey	8x2 m.
NS-DTWD 1260G	120x60	RAL 7030 Grey	8x2 m.
NS-DTWD 1280G	120x80	RAL 7030 Grey	8x2 m.
NS-DTWD 1210G	120x100	RAL 7030 Grey	8x2 m.
