Panel Accessories
Conduit Clips

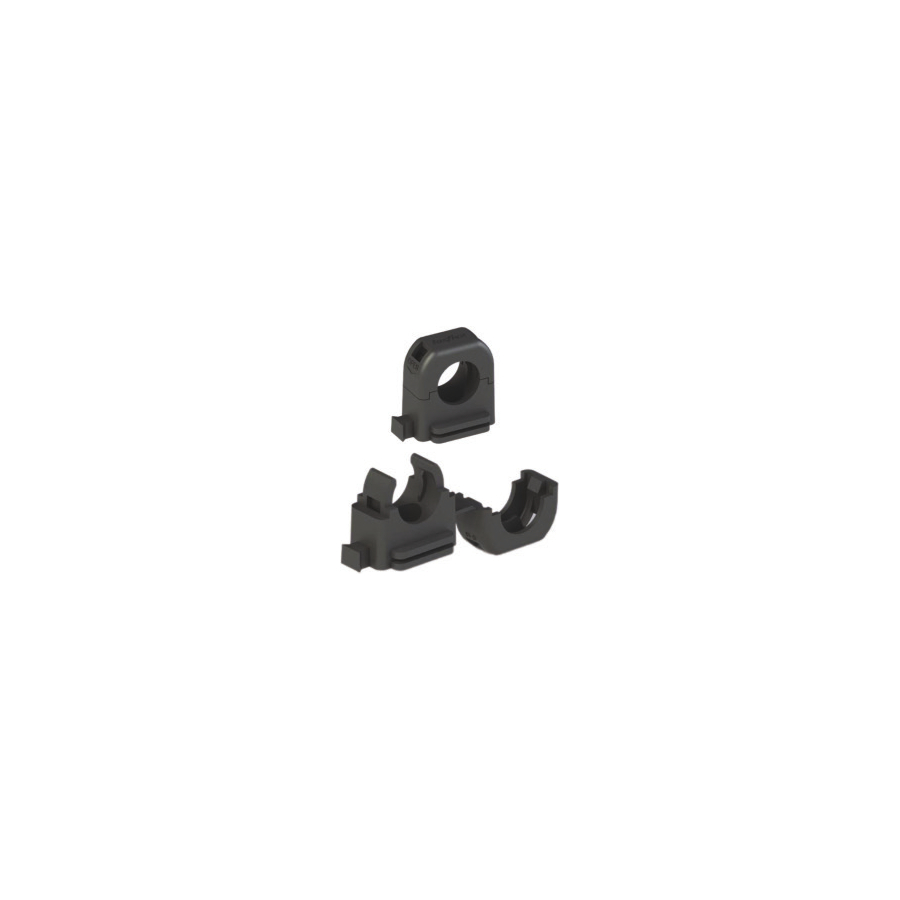

Polyamide clips fixing spiral conduit to a surface. Conduit Clips is listed with 7 reference codes.
- Reference codes
- 7
- Glands
- IP68 · 5 bar
- Thread
- Metric · PG (EN 60423)
- Material
- Polyamide · brass
01
Dimension and reference code table
You can paste the code straight into the quote form. Use the box below to search within the table.
Polyamide Clips - For Spiral Conduits
| Image | Gray code (RAL 7031) | Black code (RAL 9005) | Spiral code | L (mm) | H (mm) | ØD (mm) |
|---|---|---|---|---|---|---|
 | DTDGK 10 | DTDBK 10 | DTGPA 7 | 24,5 | 15 | 10 |
| DTDGK 13 | DTDBK 13 | DTGPA 9 | 24,5 | 15 | 13 |
| DTDGK 15 | DTDBK 15 | DTGPA 11 | 30 | 21 | 15,8 |
| DTDGK 18 | DTDBK 18 | DTGPA 13,5 | 34 | 24 | 18,5 |
| DTDGK 21 | DTDBK 21 | DTGPA 16 | 39 | 28 | 21,5 |
| DTDGK 42 | DTDBK 42 | DTGPA 36 | 74,5 | 55,5 | 42,5 |
| DTDGK 54 | DTDBK 54 | DTGPA 48 | 95,5 | 71 | 55 |
02
Catalogue
Conduit Clips is listed in the catalogues below. Download the PDF for full dimensions, drawings and technical data.
03
Other products in this family
Other pages in the Panel Accessories family.
Next step
Request a quote for this product.
Send the code, dimensions and quantity; we will reply with price and lead time.
