Medium Voltage Cable Cleats
Cleats holding medium voltage cables against short-circuit forces. Chemically resistant, halogen-free and fully recyclable body; custom production on request. Medium Voltage Cable Cleats is listed with 6 reference codes.
- Reference codes
- 6
- Glands
- IP68 · 5 bar
- Thread
- Metric · PG (EN 60423)
- Material
- Polyamide · brass
01
Dimension and reference code table
You can paste the code straight into the quote form. Use the box below to search within the table.
| Image | Product code | Description | Box qty. | Dimensions (A×B×C×H) |
|---|---|---|---|---|
 | DTKCS 16-26 | 16 - 26 MV Cable Holder | 240 | 77x37x45x49 |
| DTKCS 26-38 | 26 - 38 MV Cable Holder | 140 | 92x60x60x40 |
| DTKCS 50-76 | 50 - 76 MV Cable Holder | 60 | 126x60x95x71 |
| DTKCS 75-100 | 75 - 100 MV Cable Holder | 20 | 200x80x150x102 |

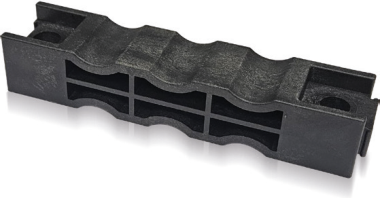

 | DTKCS UNI 3*13-32 | 3*13 - 32 MV Cable Holder | 25 | — |

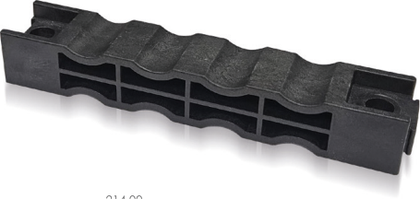

 | DTKCS UNI 4*13-32 | 4*13 - 32 MV Cable Holder | 20 | — |
02
Catalogue
Medium Voltage Cable Cleats is listed in the catalogues below. Download the PDF for full dimensions, drawings and technical data.
03
Other products in this family
Other pages in the Panel Accessories family.
Next step
Request a quote for this product.
Send the code, dimensions and quantity; we will reply with price and lead time.
