Pipe Glands — PVC / Metal
Polyamide glands for PVC and metal pipe entries. Pipe Glands — PVC / Metal is listed with 9 reference codes.
- Reference codes
- 9
- Glands
- IP68 · 5 bar
- Thread
- Metric · PG (EN 60423)
- Material
- Polyamide · brass
01
Dimension and reference code table
You can paste the code straight into the quote form. Use the box below to search within the table.

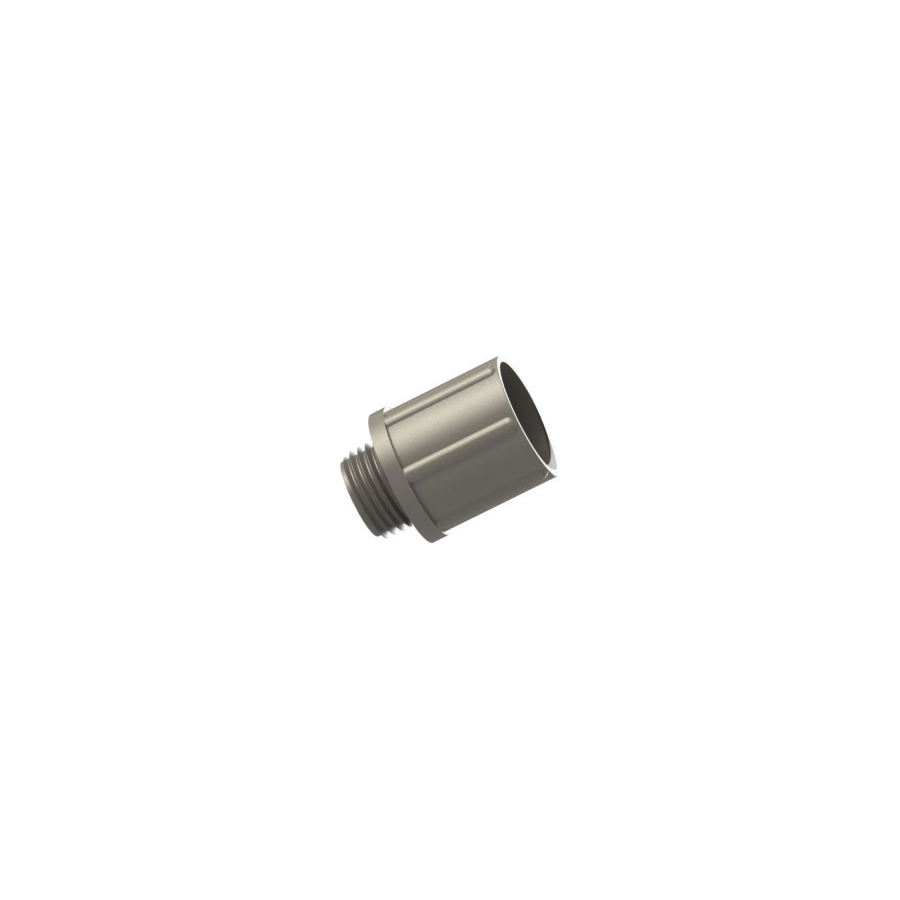

Polyamide Conduit Glands - For PVC / Metal Pipes
| Image | Thread | Gray code (RAL 7031) | Light gray code (RAL 7032) | Black code (RAL 9005) | A (mm) | B (mm) | D (mm) | GL (mm) | H (mm) | L (mm) | d (mm) | d1 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | M 12 x 1,5 | DTHG 01 | DTHL 01 | DTHB 01 | 7 | 16 | 17,5 | 8 | 29 | 20 | 13,3 | 11,6 |
| M 16 x 1,5 | DTHG 02 | DTHL 02 | DTHB 02 | 10 | 19 | 20 | 8 | 29 | 20 | 15,8 | 13,6 |
| M 16 x 1,5 | DTHG 03 | DTHL 03 | DTHB 03 | 11 | 22,5 | 24 | 8 | 32 | 23 | 20 | 17,7 |
| M 20 x 1,5 | DTHG 04 | DTHL 04 | DTHB 04 | 13 | 24,5 | 26 | 9 | 34 | 24 | 21,8 | 18,8 |
| M 20 x 1,5 | DTHG 05 | DTHL 05 | DTHB 05 | 15 | 26 | 27,5 | 10 | 35 | 24 | 23,5 | 20,7 |
| M 25 x 1,5 | DTHG 06 | DTHL 06 | DTHB 06 | 19 | 32 | 33,5 | 11 | 38 | 25,5 | 29,2 | 26,5 |
| M 40 x 1,5 | DTHG 07 | DTHL 07 | DTHB 07 | 31,5 | 41 | 42 | 11 | 43 | 30,5 | 38 | 34,7 |
| M 50 x 1,5 | DTHG 08 | DTHL 08 | DTHB 08 | 40,8 | 51,8 | 53 | 14 | 54 | 33 | 47,6 | 42,9 |
| M 63 x 1,5 | DTHG 09 | DTHL 09 | DTHB 09 | 50 | 62 | 64 | 14 | 57 | 37 | 57,7 | 53,3 |
