Distribution Boards — Surface Mounting

ABS distribution boards mounted on the wall surface. From 2 to 42 modules; metal key and terminal bar included for the DT39XX range. Distribution Boards — Surface Mounting is listed with 49 reference codes.

Request a quote Back to the family

Reference codes: 49
Protection: IP40 – IP65
Body: ABS · thermoplastic
Flammability: UL94 V0 / V2

Dimension and reference code table

You can paste the code straight into the quote form. Use the box below to search within the table.

Product code	Modules	Pack
DT 30908 B	8 Modules	20
DT 30912 B	12 Modules	12
DT 30924 B	24 (12x2) Modules	10
DT 30936 B	36 (12x3) Modules	10
DT 30936-1 B	36 (18x2) Modules	10
DT 30954 B	54 (18x3) Modules	4
DT 30972 B	72 (18x4) Modules	4

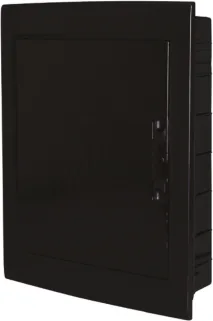

DT 32908 B	8 Modules	20
DT 32912 B	12 Modules	12
DT 32924 B	24 (12x2) Modules	10
DT 32936 B	36 (12x3) Modules	10
DT 32936-1 B	36 (18x2) Modules	10
DT 32954 B	54 (18x3) Modules	4
DT 32972 B	72 (18x4) Modules	4
DT 11905	5 Modules	24
DT 11908	8 Modules	24
DT 11912	12 Modules	12
DT 11924	24 Modules	12
DT 11936	36 Modules	10
DT 1905	5 Modules	24
DT 1908	8 Modules	24
DT 1912	12 Modules	12
DT 1924	24 Modules	12
DT 1936	36 Modules	10
DT 01011	1 Module	140
DT 01012	2 Modules	100
DT 01034	4 Modules	56
DT 01035	8 Modules	28
DT 3902	2 Modules	30
DT 3904	4 Modules	17
DT 3908	8 Modules	9
DT 3912	12 Modules	7
DT 3926	26(13x2) Modules	5
DT 3942	42(14x3) Modules	4

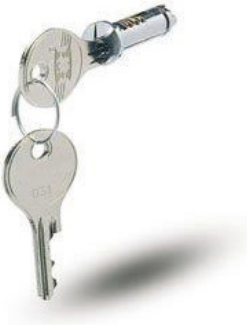

DT 3900	Metal Key for DT39XX range	1
DT 3901	Terminal Bar for DT39XX range	1

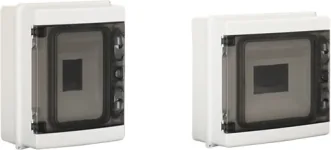

DT 20905	5 Modules	14
DT 20908	8 Modules	12
DT 20912	12 Modules	10
DT 20924	24 (12x2) Modules	4
DT 20936	36 (12x3) Modules	3
DT 20954	54 (18x3) Modules	2
DT 20972	72 (18x4) Modules	2
DT 20900	Metal Key for DT 209XX range	1
DT 913	1x5M - Suitable for DT 20905	10
DT 914	1x12M - Suitable for DT 20912	4
DT 915	2x8M - Suitable for DT 20908	3
DT 904	2x12M - Suitable for DT 20912–DT 20924–DT 20936	2
DT 12012	2x19M - Suitable for DT 20954 – DT 20972	2
