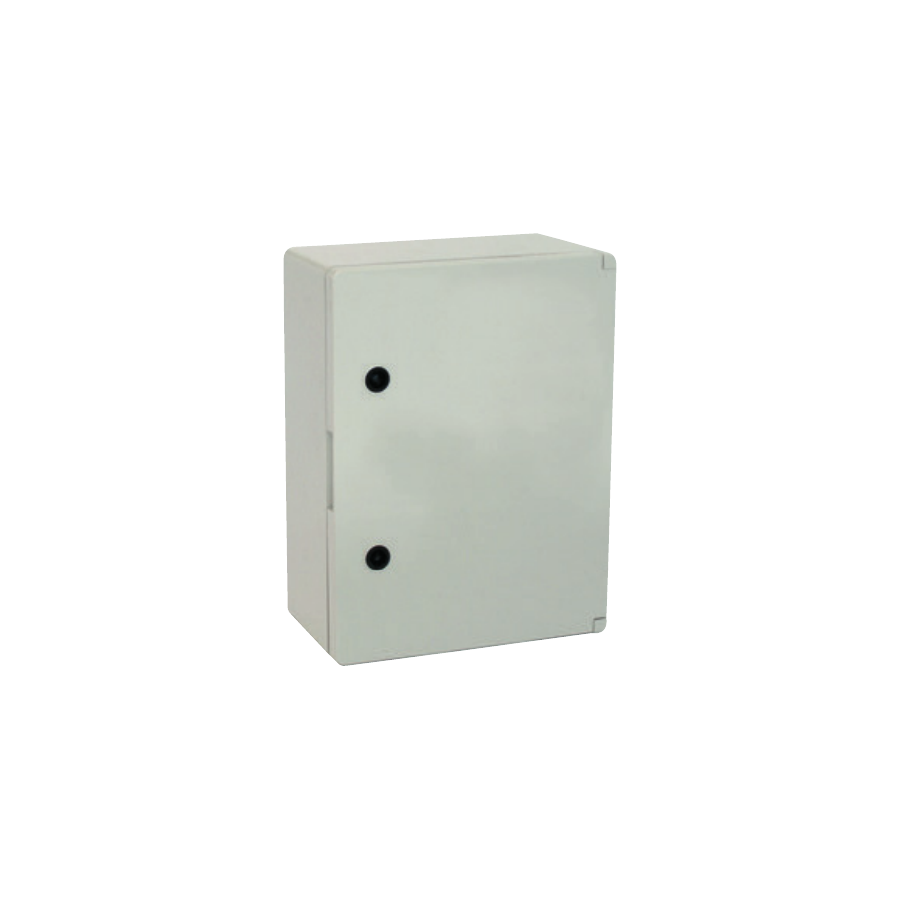

Watertight Boards — Blank Door
Gasketed watertight boards with blank door. Bodies from 210×280×130 to 500×700×245; single and double lock. Watertight Boards — Blank Door is listed with 19 reference codes.
- Reference codes
- 19
- Protection
- IP40 – IP65
- Body
- ABS · thermoplastic
- Flammability
- UL94 V0 / V2
01
Dimension and reference code table
You can paste the code straight into the quote form. Use the box below to search within the table.
| Image | Product code | Dimensions W×H×D (mm) | Locks | Pack |
|---|---|---|---|---|
 | DT 5001 | 210x280x130 | 1 | 1 |
| DT 5010 | 250x300x130 | 1 | 1 |
| DT 5002 | 250x330x130 | 1 | 1 |
| DT 5002 Y | 330x250x130 | 1 | 1 |
| DT 5002 D | 250x350x150 | 1 | 1 |
| DT 5003 Y | 400x300x165 | 2 | 1 |
| DT 5003 D | 300x400x195 | 2 | 1 |
| DT 5003 ED | 300x400x225 | 2 | 1 |
| DT 5004 | 400x500x175 | 2 | 1 |
| DT 5004 D | 400x500x245 | 2 | 1 |
| DT 5005 | 400x600x200 | 2 | 1 |
| DT 5005 D | 400x600x250 | 2 | 1 |
| DT 5006 Y | 500x700x245 | 2 | 1 |
| DT 5007 | 350x500x195 | 2 | 1 |
| DT 5021 | 300x350x165 | 1 | 1 |
| DT 5022 | 180x240x120 | 1 | 1 |
| DT 5006 | 500x700x245 | 2 | 1 |
| DT 5008 | 500x600x210 | 2 | 1 |
| DT 5009 | 600x800x260 | 3 | 1 |
02
Catalogue
Watertight Boards — Blank Door is listed in the catalogues below. Download the PDF for full dimensions, drawings and technical data.
