Distribution Boards

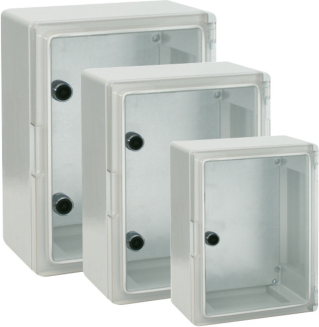

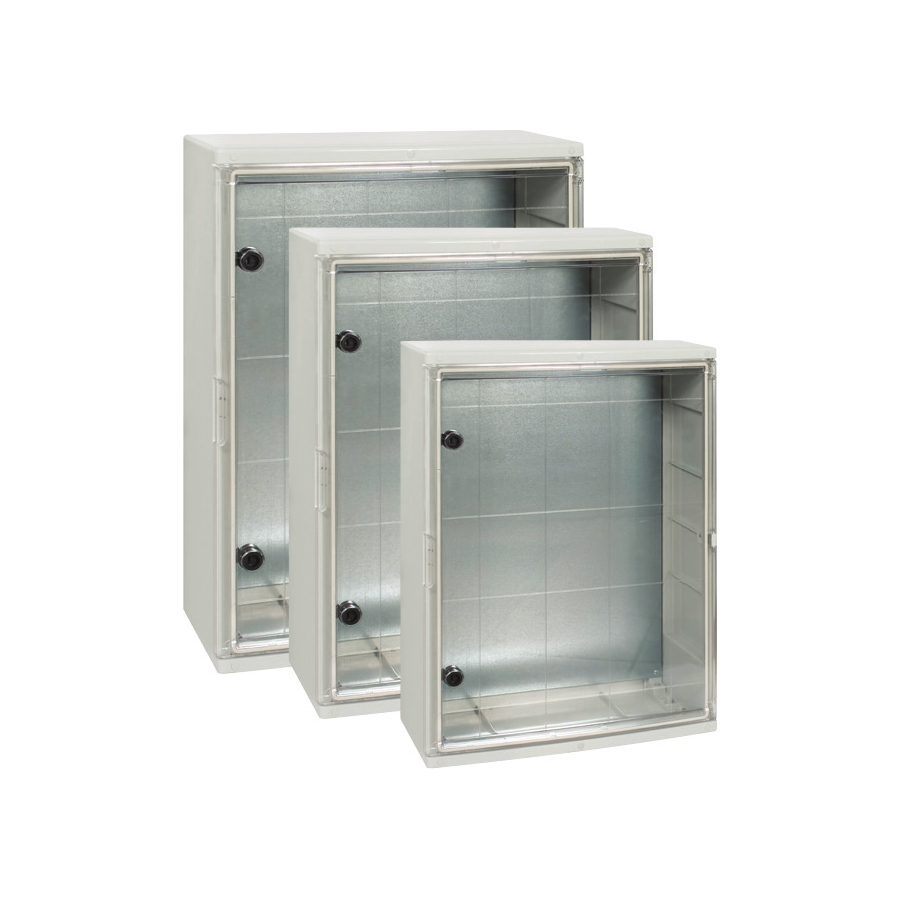

Watertight Boards — Transparent Door
Watertight boards with transparent door; meters are read without opening the enclosure. Watertight Boards — Transparent Door is listed with 20 reference codes.
- Reference codes
- 20
- Protection
- IP40 – IP65
- Body
- ABS · thermoplastic
- Flammability
- UL94 V0 / V2
01
Dimension and reference code table
You can paste the code straight into the quote form. Use the box below to search within the table.
| Image | Product code | Dimensions W×H×D (mm) | Locks | Pack |
|---|---|---|---|---|
 | DT 5011 | 210x280x130 | 1 | 1 |
| DT 5020 | 250x300x130 | 1 | 1 |
| DT 5012 | 250x330x130 | 1 | 1 |
| DT 5012 D | 250x350x150 | 1 | 1 |
| DT 5013 | 300x400x165 | 2 | 1 |
 | DT 5013 D | 300x400x195 | 2 | 1 |
| DT 5014 | 400x500x175 | 2 | 1 |
| DT 5014 D | 400x500x245 | 2 | 1 |
| DT 5015 | 400x600x200 | 2 | 1 |
| DT 5016 Y | 500x700x245 | 2 | 1 |
| DT 5017 | 350x500x195 | 2 | 1 |
| DT 5031 | 300x350x165 | 1 | 1 |

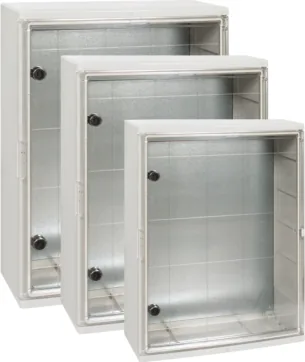

 | DT 5032 | 180x240x120 | 1 | 1 |
| DT 5012Y | 330x250x130 | 1 | 1 |
| DT 5013D | 300x400x225 | 2 | 1 |
| DT 5013Y | 400x300x165 | 2 | 1 |
| DT 5015Y | 400x600x250 | 2 | 1 |
| DT 5016 | 500x700x245 | 2 | 1 |
| DT 5018 | 500x600x220 | 2 | 1 |
| DT 5019 | 600x800x260 | 3 | 1 |
02
Catalogue
Watertight Boards — Transparent Door is listed in the catalogues below. Download the PDF for full dimensions, drawings and technical data.
03
Other products in this family
Other pages in the Distribution Boards family.
Next step
Request a quote for this product.
Send the code, dimensions and quantity; we will reply with price and lead time.
