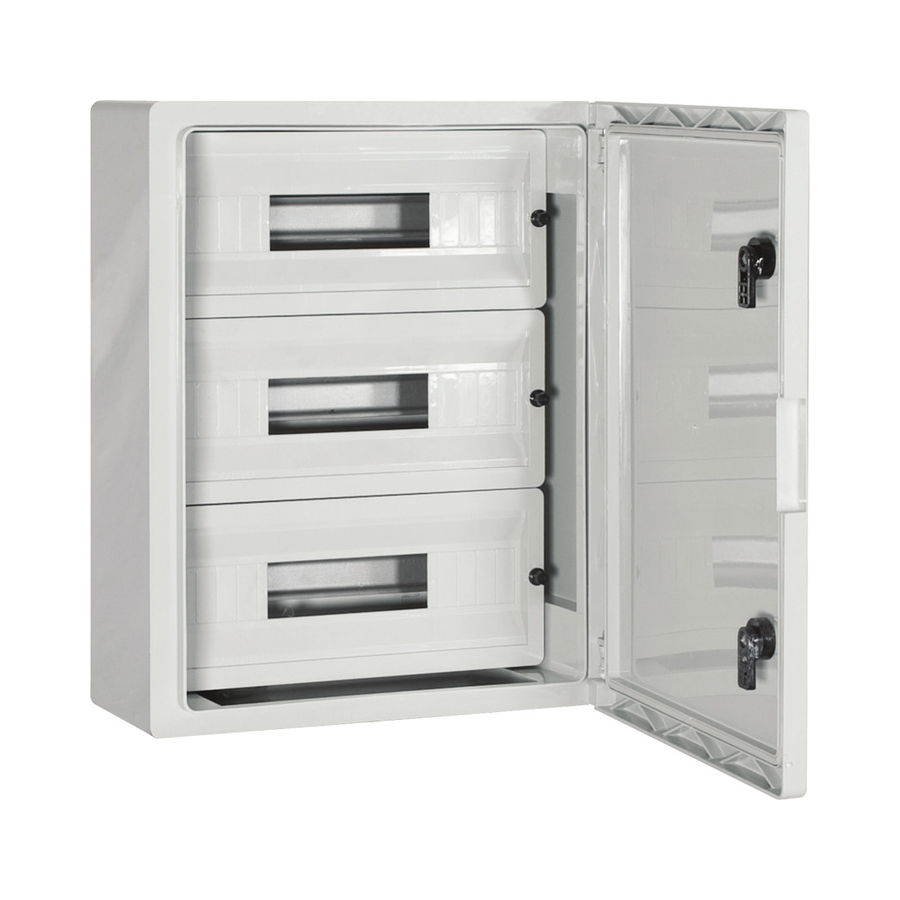

Distribution Boards — With DIN Rail
Watertight distribution boards carrying an internal DIN rail. From 8 to 72 modules; ready for MCB and modular device mounting. Distribution Boards — With DIN Rail is listed with 18 reference codes.
- Reference codes
- 18
- Protection
- IP40 – IP65
- Body
- ABS · thermoplastic
- Flammability
- UL94 V0 / V2
01
Dimension and reference code table
You can paste the code straight into the quote form. Use the box below to search within the table.
Distribution Boards with DIN Rail Fixing
| Image | Product code | Dimensions W×H×D (mm) | Modules | Pack |
|---|---|---|---|---|
 | DT 5101 | 210x280x130 | 8M(1x8) | 1 |
| DT 5102 | 250x330x130 | 18M(2x9) | 1 |
| DT 5103 | 300x400x165 | 24M(2x12) | 1 |
| DT 5104 | 400x500x175 | 51M(3x17) | 1 |
| DT 5105 | 400x600x200 | 68M(4x17) | 1 |
| DT 5106 | 500x700x245 | 88M(4x22) | 1 |
| DT 5107 | 350x500x195 | 45M(3x15) | 1 |
| DT 5108 | 500x600x220 | 66M(3x22) | 1 |
| DT 5109 | 600x800x260 | 100M(4x25) | 1 |
| DT 5111 | 210x280x130 | 8M(1x8) | 1 |
| DT 5112 | 250x330x130 | 18M(2x9) | 1 |
| DT 5113 | 300x400x165 | 24M(2x12) | 1 |
| DT 5114 | 400x500x175 | 51M(3x17) | 1 |
| DT 5115 | 400x600x200 | 68M(4x17) | 1 |
| DT 5116 | 500x700x245 | 88M(4x22) | 1 |
| DT 5117 | 350x500x195 | 45M(3x15) | 1 |
| DT 5118 | 500x600x220 | 66M(3x22) | 1 |
| DT 5119 | 600x800x260 | 100M(4x25) | 1 |
02
Catalogue
Distribution Boards — With DIN Rail is listed in the catalogues below. Download the PDF for full dimensions, drawings and technical data.
03
Other products in this family
Other pages in the Distribution Boards family.
Next step
Request a quote for this product.
Send the code, dimensions and quantity; we will reply with price and lead time.
